Complete Waterproof 4” Speaker Audio Package – Two Pairs of 4” Speaker Pods, Marine Amplifier, BT Controller, Super Easy Plug-N-Play Installation
Quad Recoil R4 4-Inch speaker pods featuring 3″ passive radiators for impressive bass response, 1” voice coil, and 1” PEI dome Neo-magnet tweeter beat any bigger 5.25″ speakers. UV Stable rugged injection-molded enclosure is designed for tough environments. Mounting clamps fit 1.5”, 1.75”, 1.85” & 2” bars.
Recoil Marine Rated 4-Channel Class-D full-range Amplifier AMP4, 600 Watts of Dynamic Power, 4-Channel with Bridging Capability, Waterproof mini-DIN plug & play connection with BT controller, Conformal-Coated Circuit Board, IPX7 Waterproof Rating
Marine BT controller RB1 is equipped with BT® CSR chips. Large LED backlit push-button controls are easy-to-see and easy to use. Waterproof mini-DIN plug & play connection with an amplifier, IPX7 Waterproof Rating, Flush mount, and surface mount adaptors are included.
Application: This complete audio kit fits all types of 12v vehicles with round 1.5″-2″ bars, such as UTV, ATV, Golf Cart, Boat, Off-Road Motorsports, Jeep, etc…..
ALL-IN-ONE Complete Set

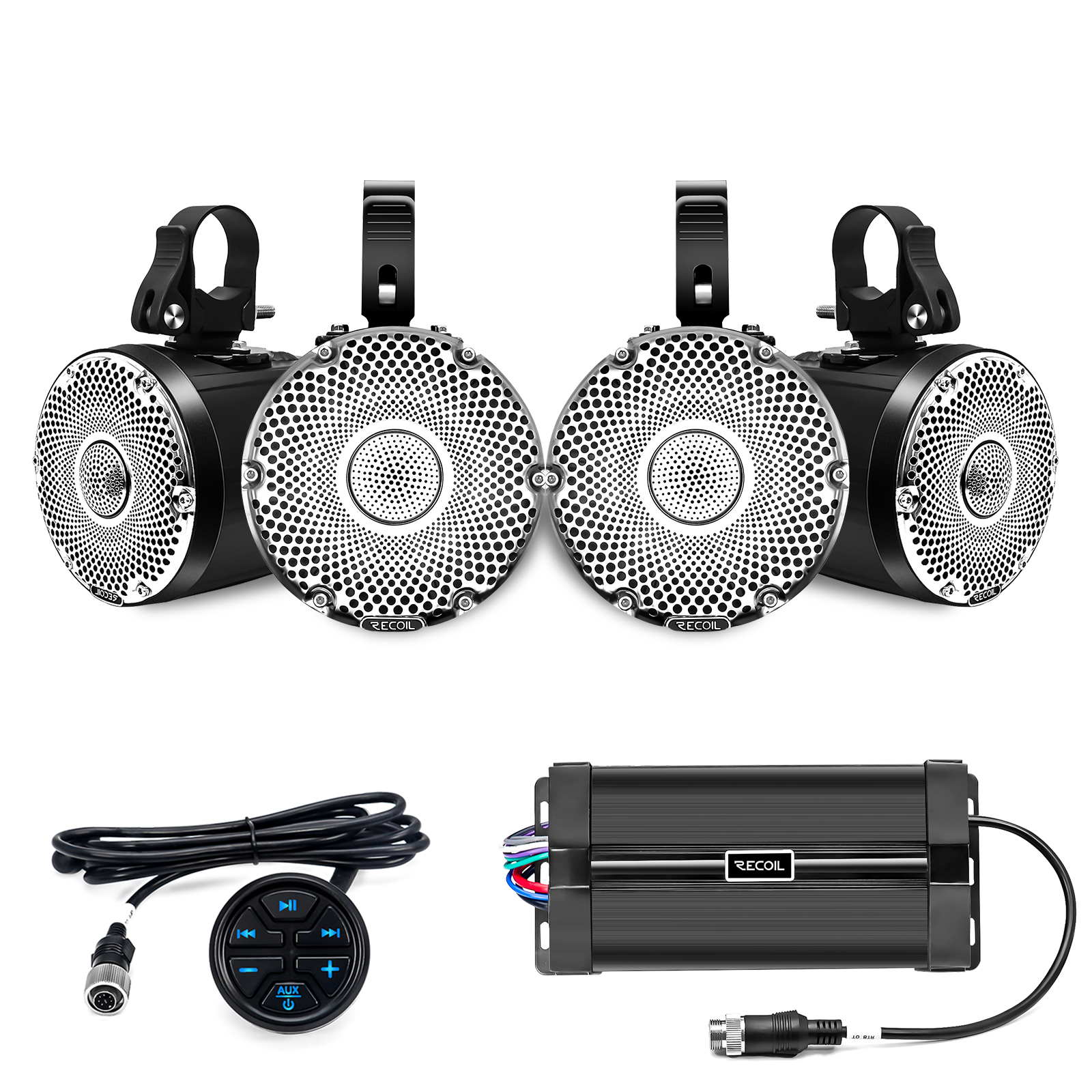

Recoil R4-Q Waterproof Powersports Audio System has it all in one package. Two pairs of 4” pod speakers, AMP4 amplifier, RB1 BT Controller, wire & accessories are all included in one package. Simple DIY kit ready to GO!
Two Pairs of Recoil R4 speakers featuring 3″ passive radiators in the back of the pod for an increased bass experience. At only 4″ speakers will beat any bigger 5.25″ speakers in the market. Your bike will have the perfect-sized pods with the BIGGEST sound.
AMP4 Marine amplifier – This 4-channel full-range amplifier is specially designed to deliver tremendous power (600 Watts Peak) in a tiny waterproof footprint. It is designed for IPX7 Waterproof Rating. AMP4 employs ultra-efficient switching technologies to generate loads of high-fidelity sound, without straining small charging systems. Housed in compact, cast-aluminum chassis, AMP4 is waterproof (IPX7 rated) and can go where conventional 12V amplifiers wouldn’t dare. It will take R4 speakers right to their very BEST!
RB1 BT controller delivers your favorite music from a BT® equipped device directly to your audio system. With an IP67 water-resistant design, RB1 is ideal for ATVs, utility vehicles, small watercraft, or motorcycles. Large LED backlit push-button controls are easy-to-see and easy to use, day or night. The included mounting adaptors make installation a breeze. Equipped with BT® CSR chips, the RB1 sends top-quality audio and performance from compatible devices to deliver dynamic, CD-like sound without any cables. With a wireless connection range of up to 35 ft.
Bill Of Material:
Two Pairs of R4 – 4″ Speaker Pods with Pair of 3″ Passive Radiators
Power Rating: Peak 200W (Pair) / RMS 100W (Pair)
Nominal Impedance: 4 Ohm
Passive Radiator: 3”
Tweeter: 1” (25.4mm) PEI Diaphragm
12′ of speaker cable
Mounting Clamp fits 1.5”, 1.75”, 1.85” and 2” bars
One Piece of RB1 controller:
BT streaming + AUX input
One Piece of AMP4 – 4 channels Marine amplifier
Power output at 4Ω – RMS 75W x 4 / Peak 150W x 4
Power output at 2Ω – RMS 90W x 4 / Peak 180W x 4
Power output at 4Ω Bridged – RMS 180W x 2 / Peak 360W x 2
