BRP-PRO - Active Line Output Converter - Bass Restoration Processor / Loc / Line Driver

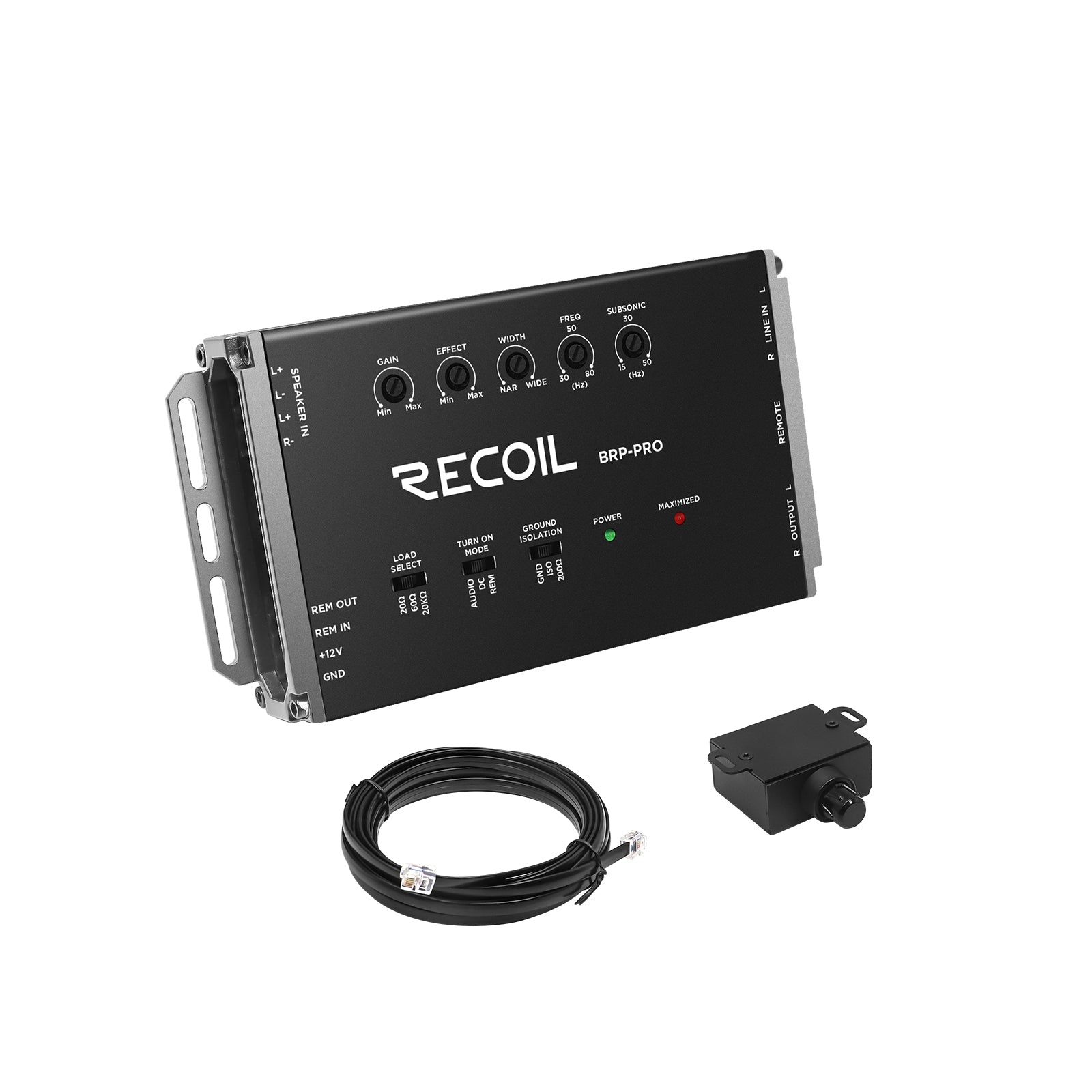

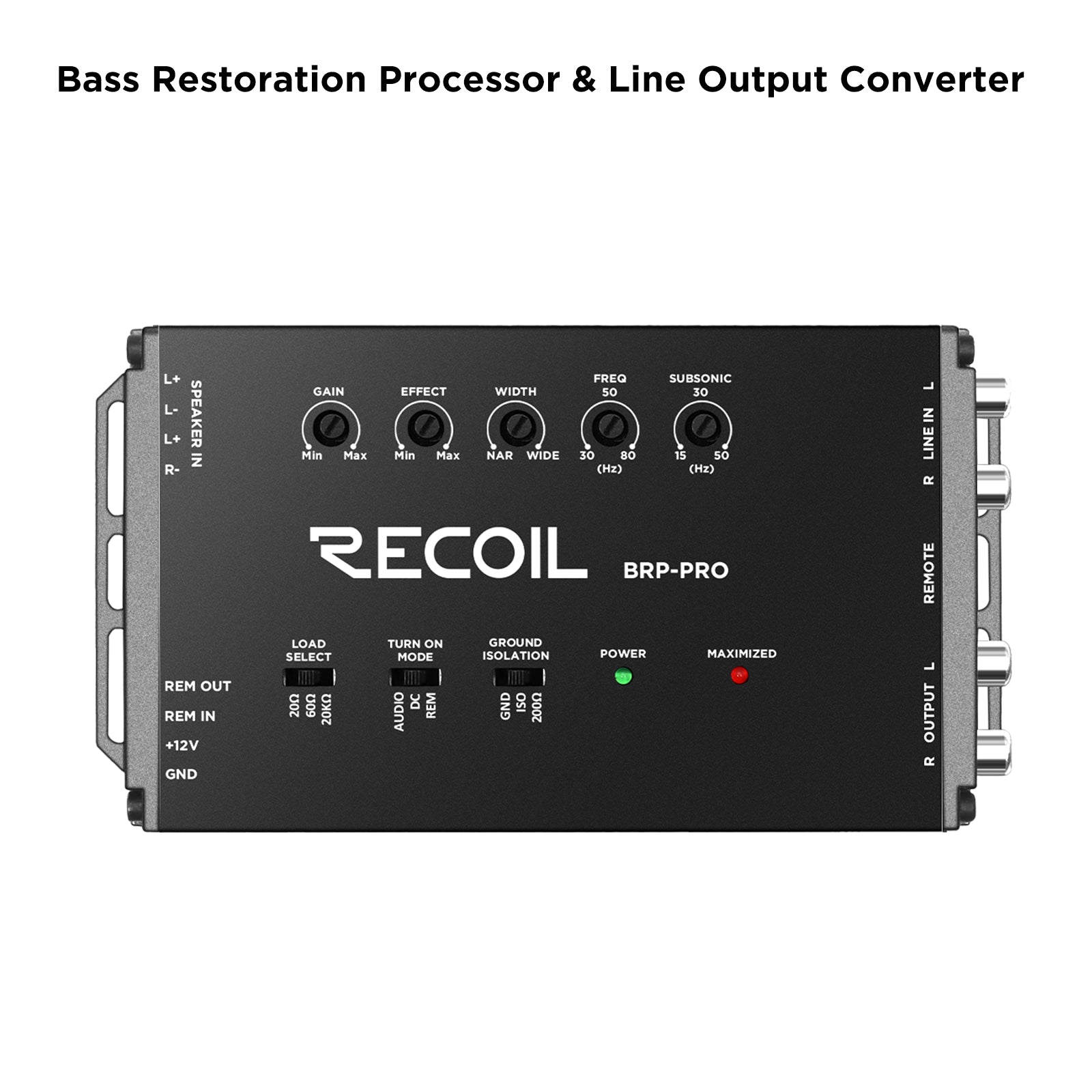

The BRP-PRO is Recoil's most capable active line output converter, built specifically for modern OEM head units that double as infotainment, navigation, and DSP hubs. With dual-path inputs accepting both high-voltage speaker-level signals (up to 40V) and RCA-level sources, this unit gives installers the flexibility to tap into virtually any factory system. Onboard bass restoration, ground isolation, and clip indication make it a complete signal management solution in a single processor.

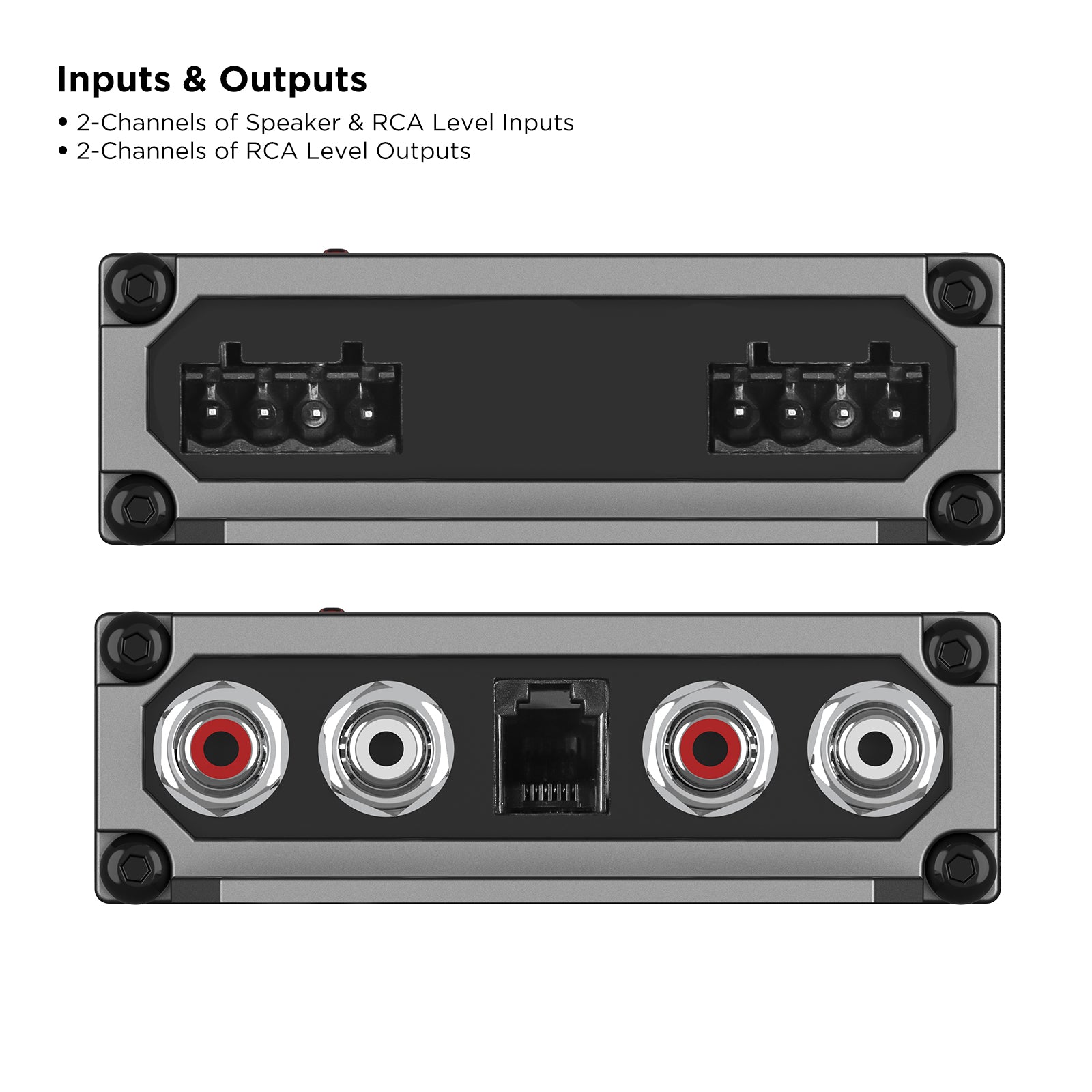

• Dual input paths: Accepts 2-channel speaker-level inputs up to 40V and 2-channel RCA-level inputs simultaneously.

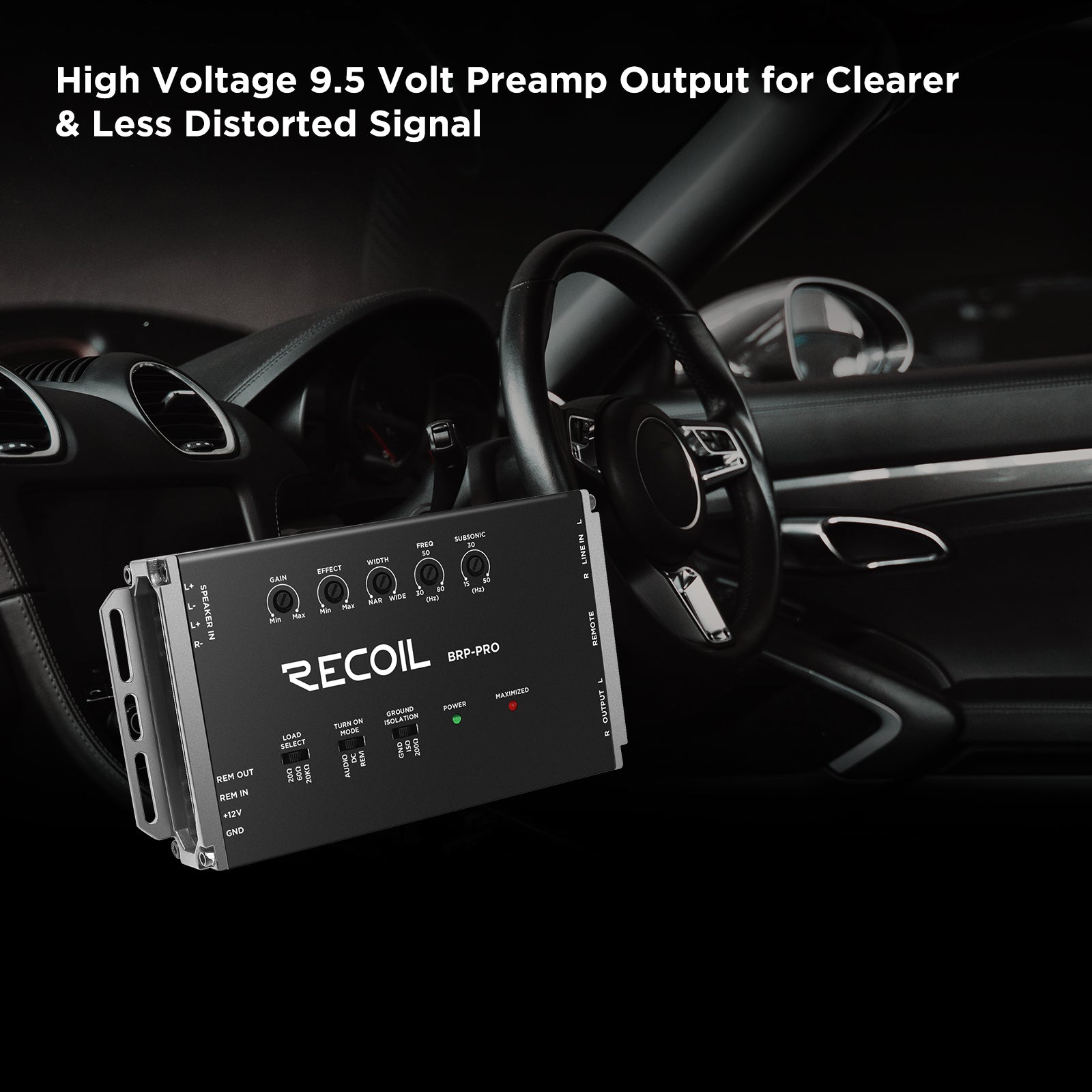

• 4-channel RCA output: Delivers up to 9.5V of clean output signal across 4 RCA channels.
• Bass restoration suite: Independent controls for effect, width, frequency, and a subsonic filter to recover low-end lost by OEM signal processing.
• Onboard load resistor selection: Switchable impedance settings (200Ω, 600Ω, 20kΩ) to match the source unit's output requirements.
• Ground isolation switching: Selectable GND, ISO, or 200Ω modes to eliminate noise and ground loops.
• Flexible turn-on triggering: Remote, DC offset, and audio-sensing modes plus a 12V trigger output for downstream components.
• Clip indicator: Real-time signal clipping detection for accurate gain setting during installation.
