MLOC4 - 4-channel Smart Micro Line Output Converter with 10v Output and 12v Remote Turn-on Trigger and 60 OHM Load Impedance

The MLOC4 is a 4-channel micro line output converter designed for integrating an aftermarket amplifier with a factory radio. It converts speaker-level output from OEM head units to low-level RCA signal, handling up to 80 watts of input while delivering up to 10 volts of output. Its 60-ohm load impedance ensures compatibility with most smart factory radios that monitor speaker line resistance.

• 4-Channel Output: Converts four channels of speaker-level signal to RCA line-level simultaneously.
• High Output Voltage: Delivers up to 10V output for clean signal transfer to amplifier inputs.

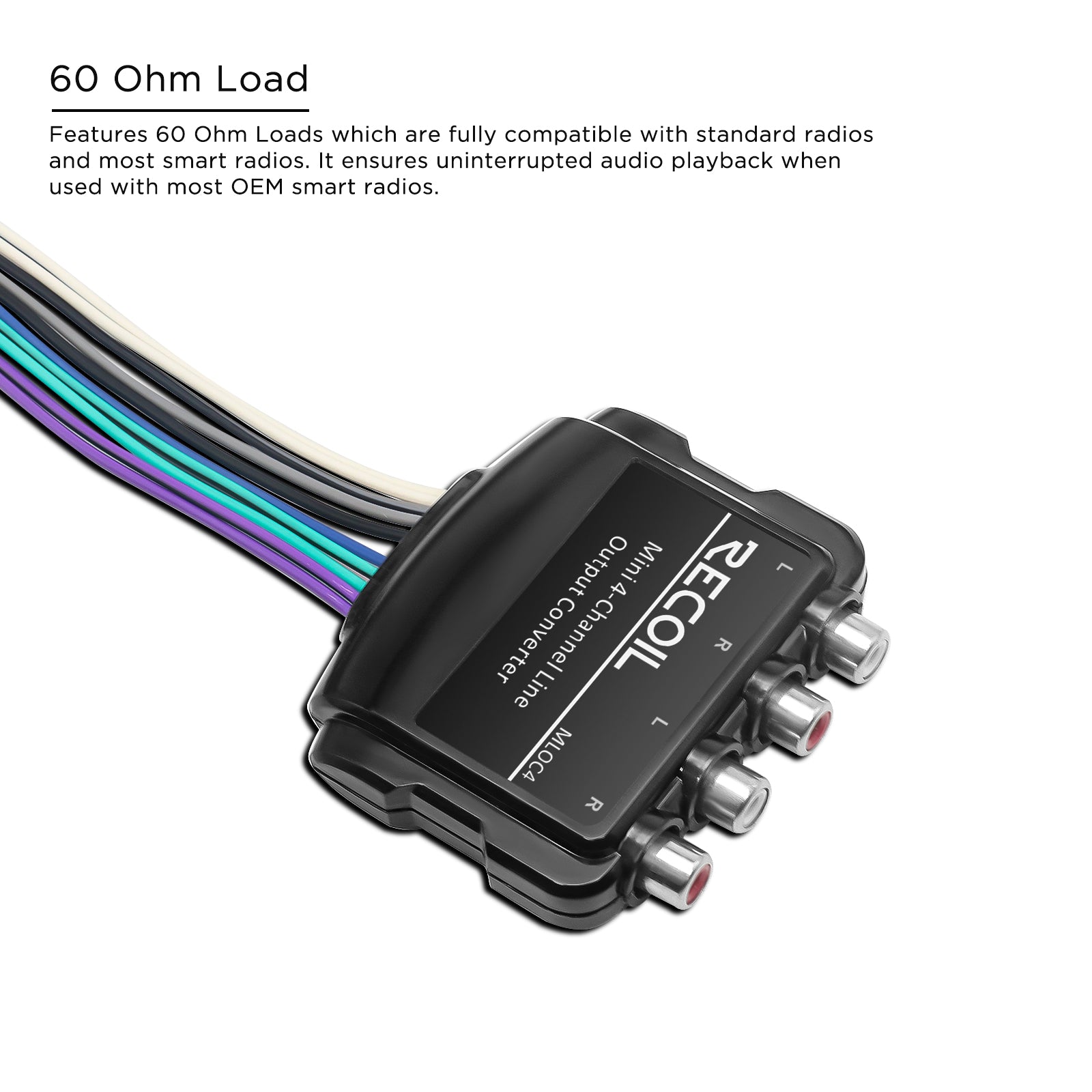

• OEM Smart Radio Compatible: 60-ohm load impedance prevents error codes and audio interruptions on factory head units.
• Wide Input Handling: Accepts up to 80 watts of speaker-level input signal.
• Flat Frequency Response: 20Hz–20kHz response maintained at all volume levels for accurate signal reproduction.
• 12V Remote Trigger: Built-in 12V remote turn-on output to power connected amplifiers automatically.
