PW10D2 - Echo Pro 10 Inch Subwoofer - 1,200 Watts Power Dual 2 OHM Voice Coil, 2.5" Black-coated 4 Layer High Temperature Voice Coil, Competition Grade Impp Cone

The PW10D2 is a dual 2-ohm, 10-inch subwoofer built to handle sustained high-output use without thermal compromise. With 600W RMS and a 4-layer high-temperature copper voice coil, it's engineered for setups that demand consistent low-end performance over extended sessions. The wide frequency response of 29–400 Hz gives it versatility across both deep sub-bass and midbass territory.

• 4-Layer High-Temperature Copper Voice Coil: Sustains peak performance during extended high-power operation without heat-related degradation.

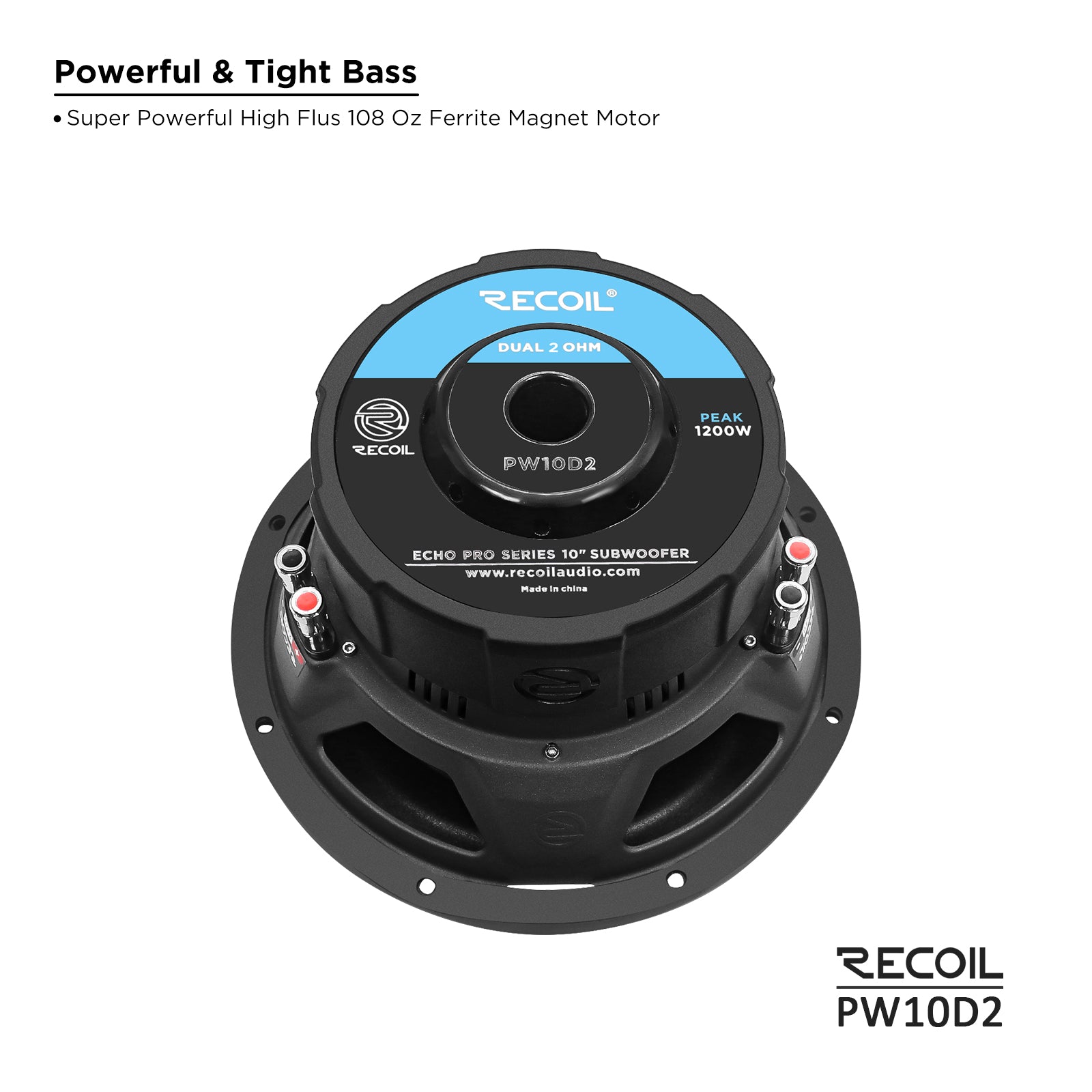

• High-Flux Ferrite Motor: 108 oz magnet structure delivers strong, controlled bass reproduction across the full low-frequency range.
• Polycarbonate Spider Suspension: Purpose-designed for improved responsiveness and consistent excursion control under load.

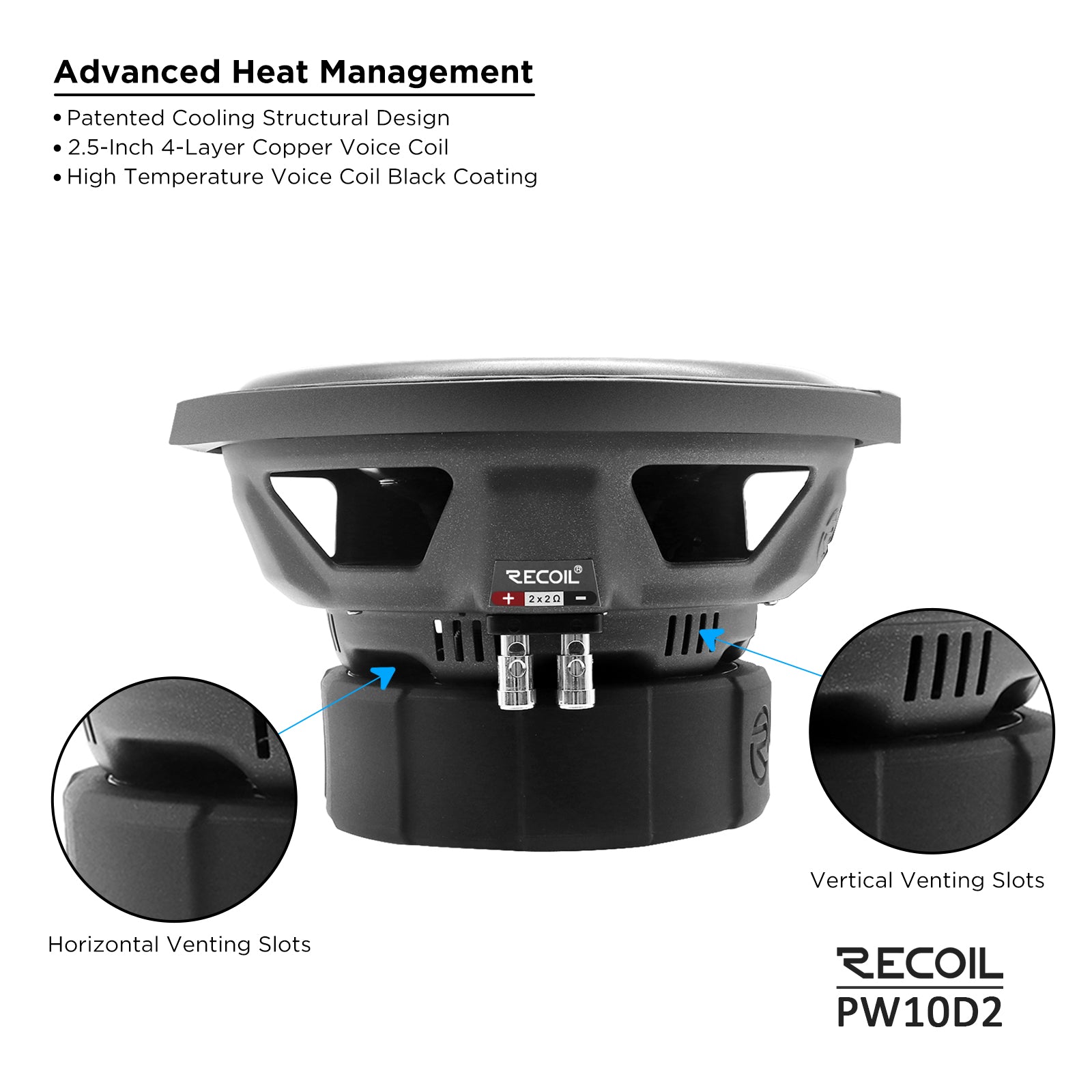

• Advanced Airflow Cooling System: Actively manages thermal buildup to support long-duration playback at high power levels.

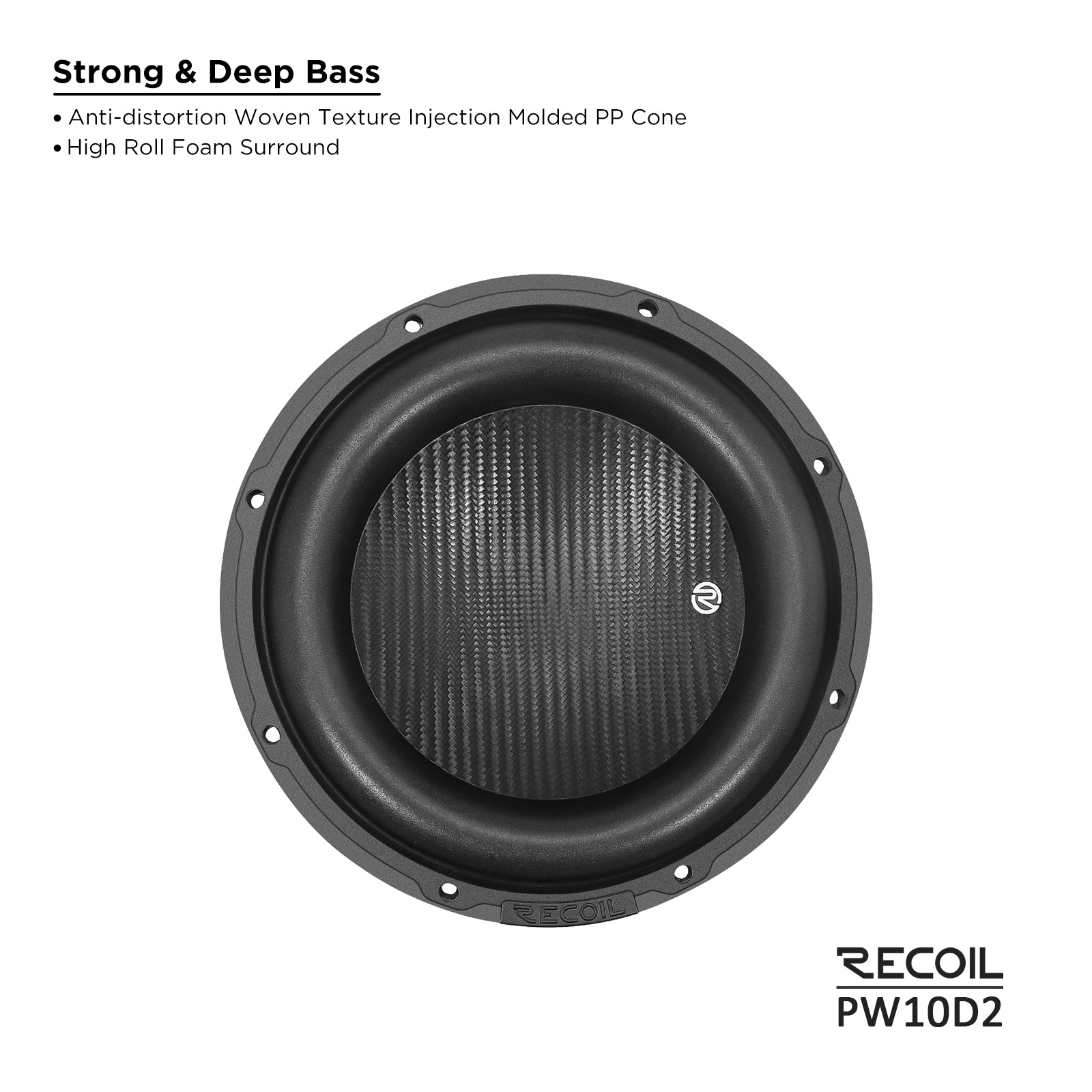

• IMPP Cone Construction: Injection-molded polypropylene cone balances rigidity and low mass for accurate bass response.

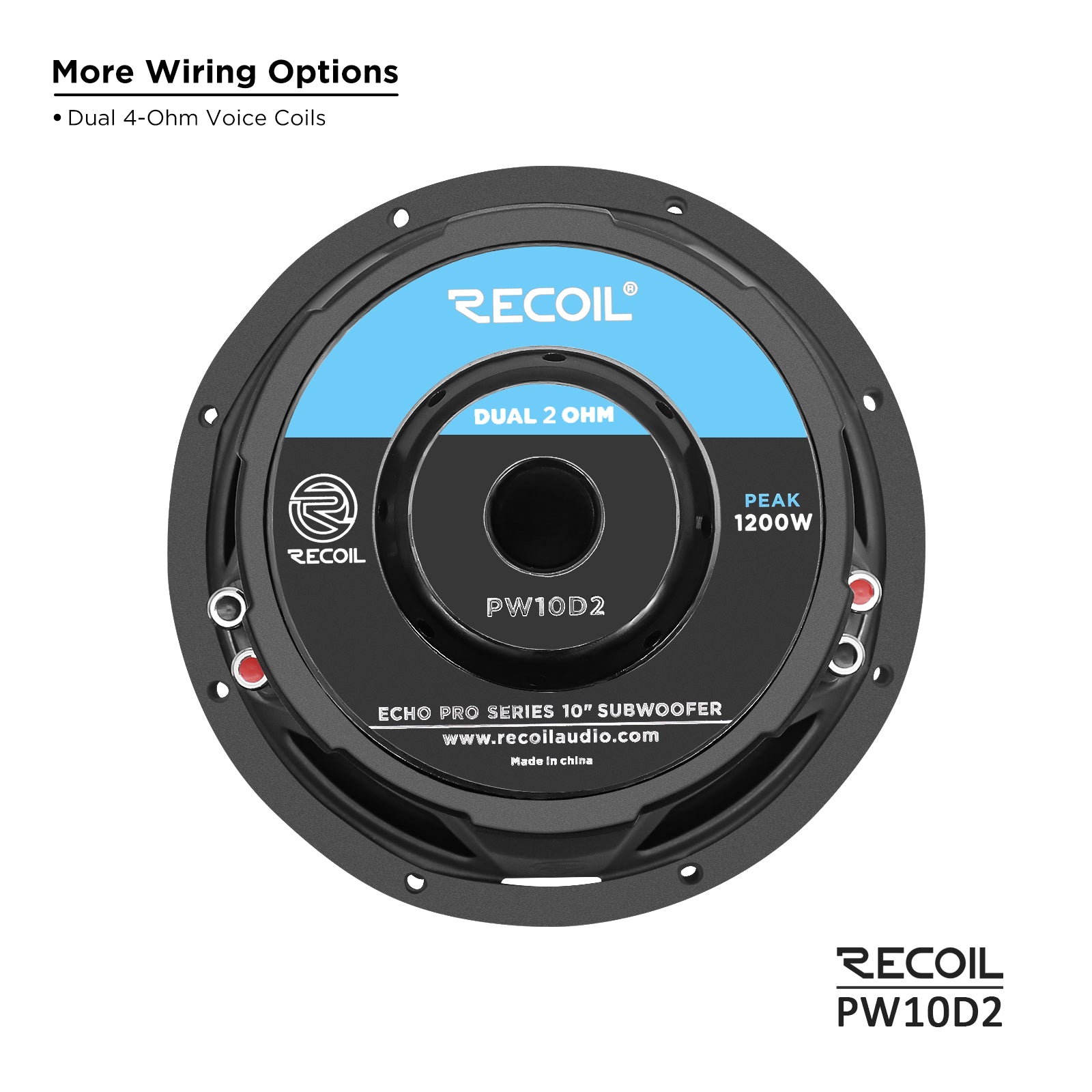

• Dual 2-Ohm Configuration: Wires to 1 ohm (parallel) or 4 ohms (series), offering flexibility for a wide range of amplifier setups.

Specifications

• Nominal Impedance: Dual 2Ω
• RMS Power Handling: 600 Watts
• MAX Power Handling: 1200 Watts
• Frequency Response: 29–400 Hz
• Voice Coil Diameter: 2.5" (63.5mm)
• Voice Coil Material: ASV
• Cone Material: IMPP
• Frame: Steel
• Magnet: Ferrite
• Magnet Weight: 306 oz (108 oz)
• Xmax: 9.8mm

Thiele/Small Parameters

• Revc: 1 Ω
• Sensitivity: 83.2 dB
• Fs: 28.6 Hz
• Qts: 0.43
• Qes: 0.47
• Qms: 4.89
• Mms: 154.8 g
• Vas: 27.7 L
• η0 (Efficiency): 0.13%
• Cms: 0.20 mm/N
• BL: 7.7 T·m
• Sd: 314.2 cm²

Dimensions

• Overall Depth: 6.85" (174mm)
• Mounting Depth: 5.83" (148mm)
• Overall Diameter: 10.35" (263mm)
• Cutout Diameter: 9.17" (233mm)
