PW12D2 - Echo Pro 12 Inch Subwoofer - 1,400 Watts Power Dual 2 OHM Voice Coil, 2.5" Black-coated 4 Layer High Temperature Voice Coil, Competition Grade Impp Cone

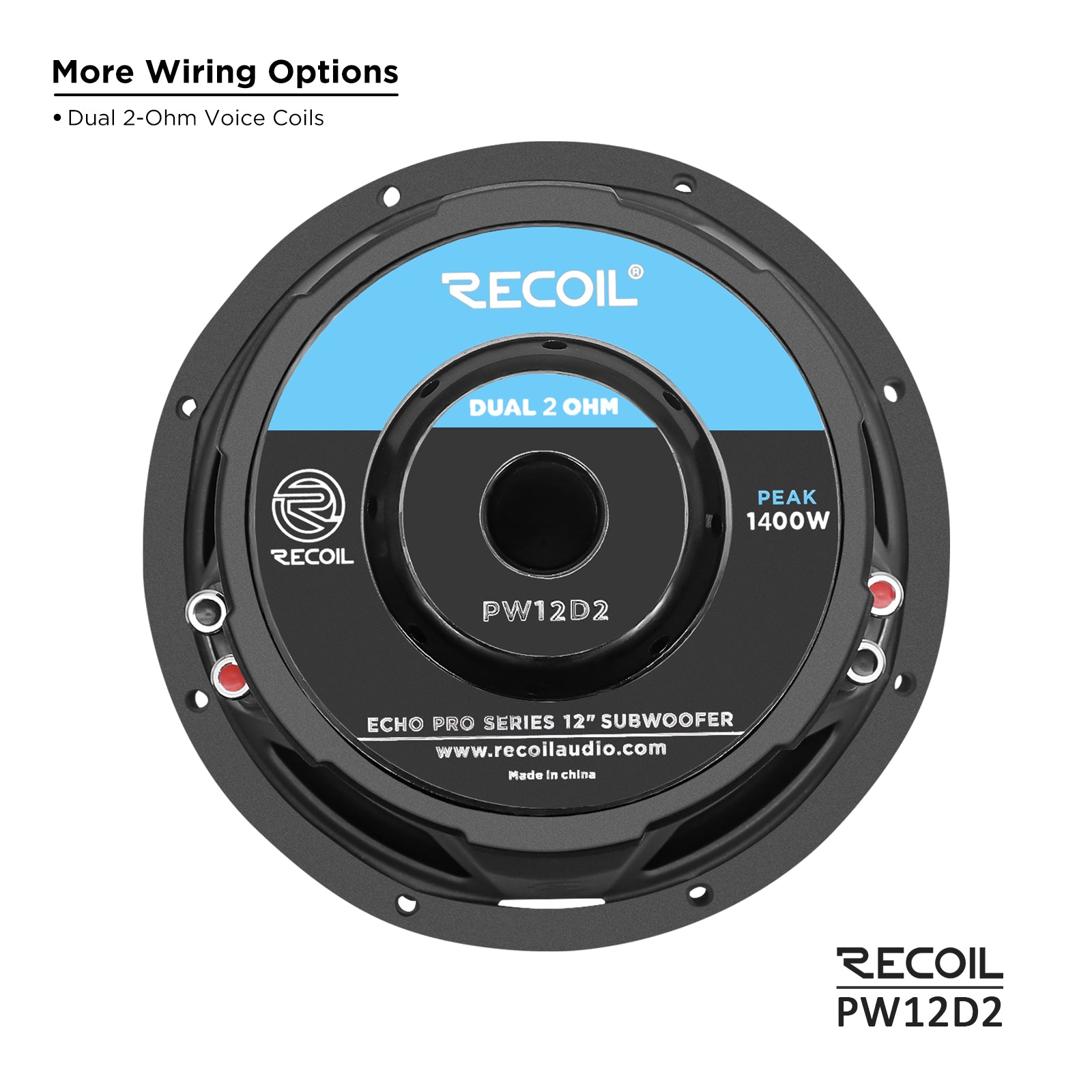

The PW12D2 is a dual 2-ohm, 12-inch subwoofer built for sustained high-output performance in demanding installs. At 700W RMS and 1400W peak, it delivers authoritative low-end reproduction from 25 Hz to 400 Hz without thermal compromise. The dual voice coil configuration gives installers flexible wiring options for 1-ohm or 4-ohm final impedance loads.

• 4-layer high-temperature copper voice coil — 2.5" (63.5mm) diameter construction rated for extended high-power operation without thermal degradation.

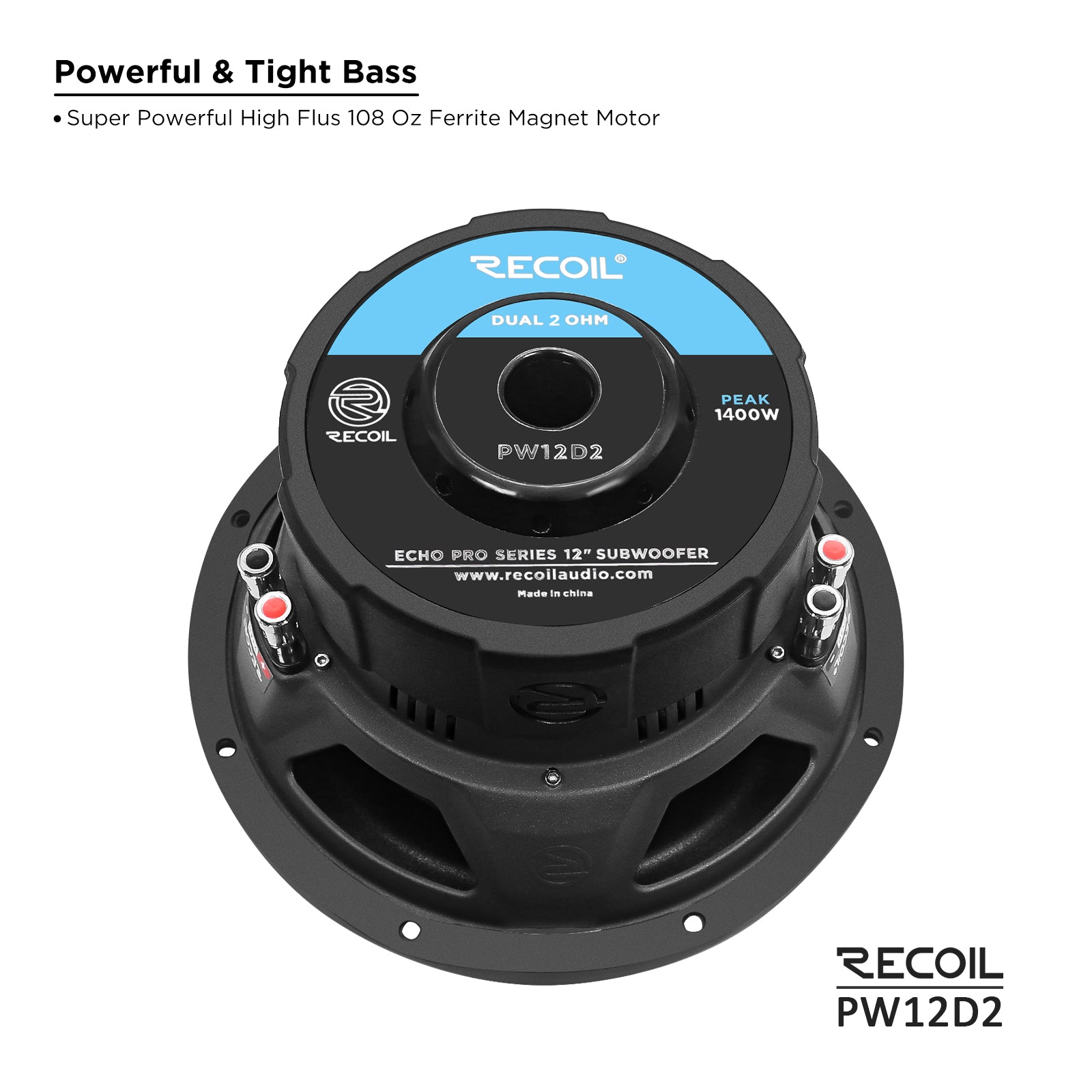

• High-flux ferrite motor — 108 oz. magnet assembly drives precise, controlled bass response across the full frequency range.

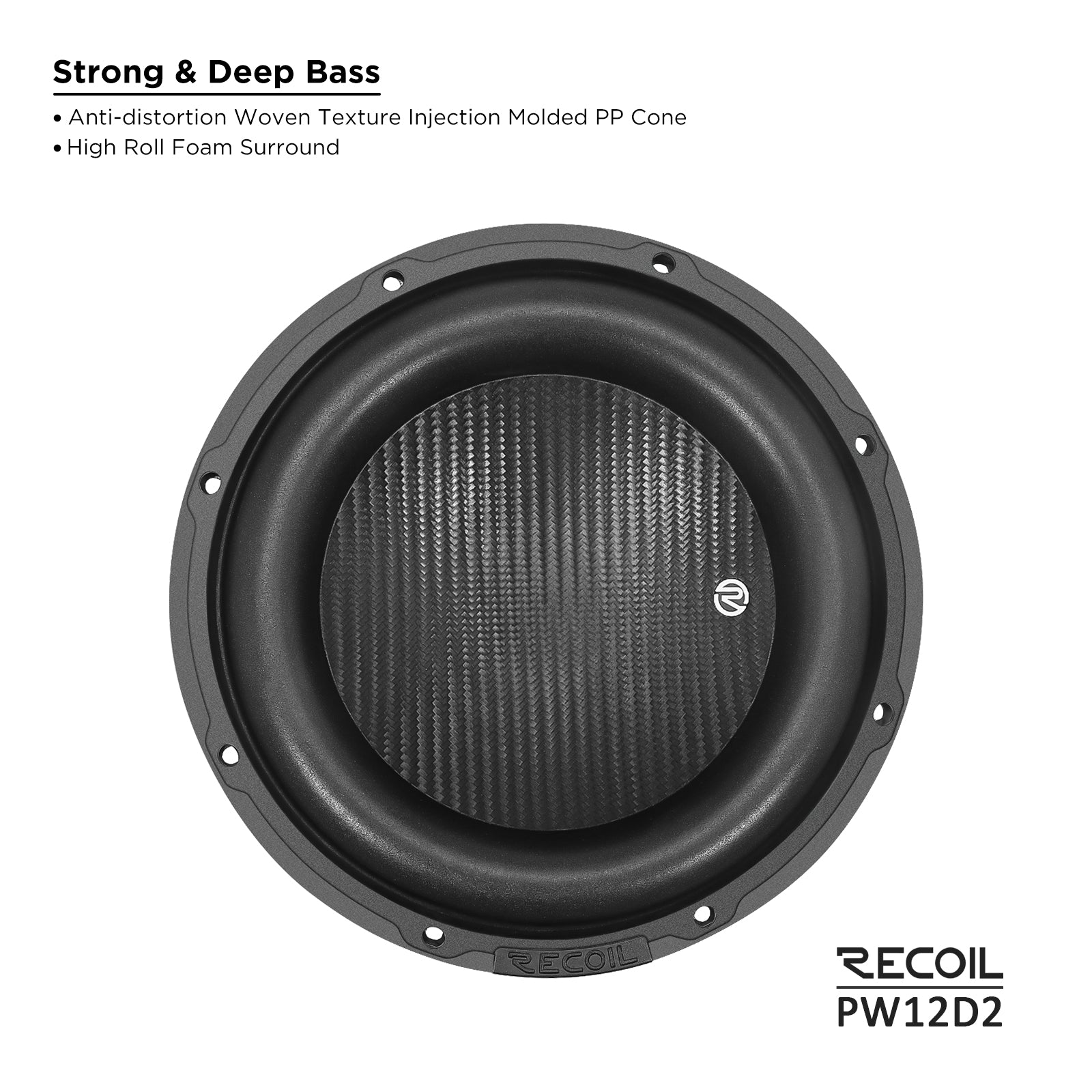

• IMPP cone material — Injection-molded polypropylene cone balances rigidity and mass for accurate low-frequency pistonic motion.
• Polycarbonate spider suspension — Unique material choice improves linearity and durability compared to standard woven fabric spiders.

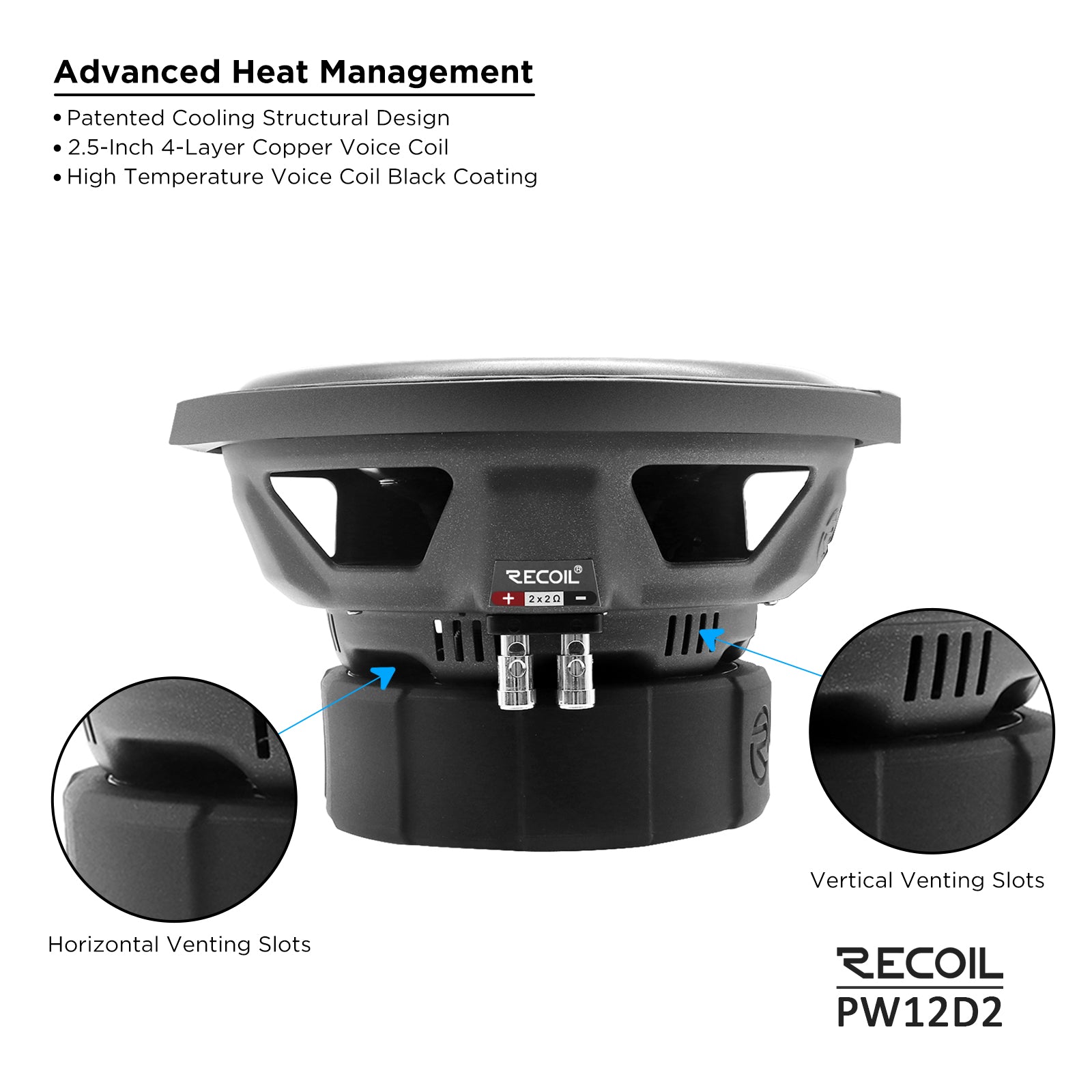

• Advanced airflow cooling system — Engineered venting keeps the voice coil and motor assembly cooler under sustained load.

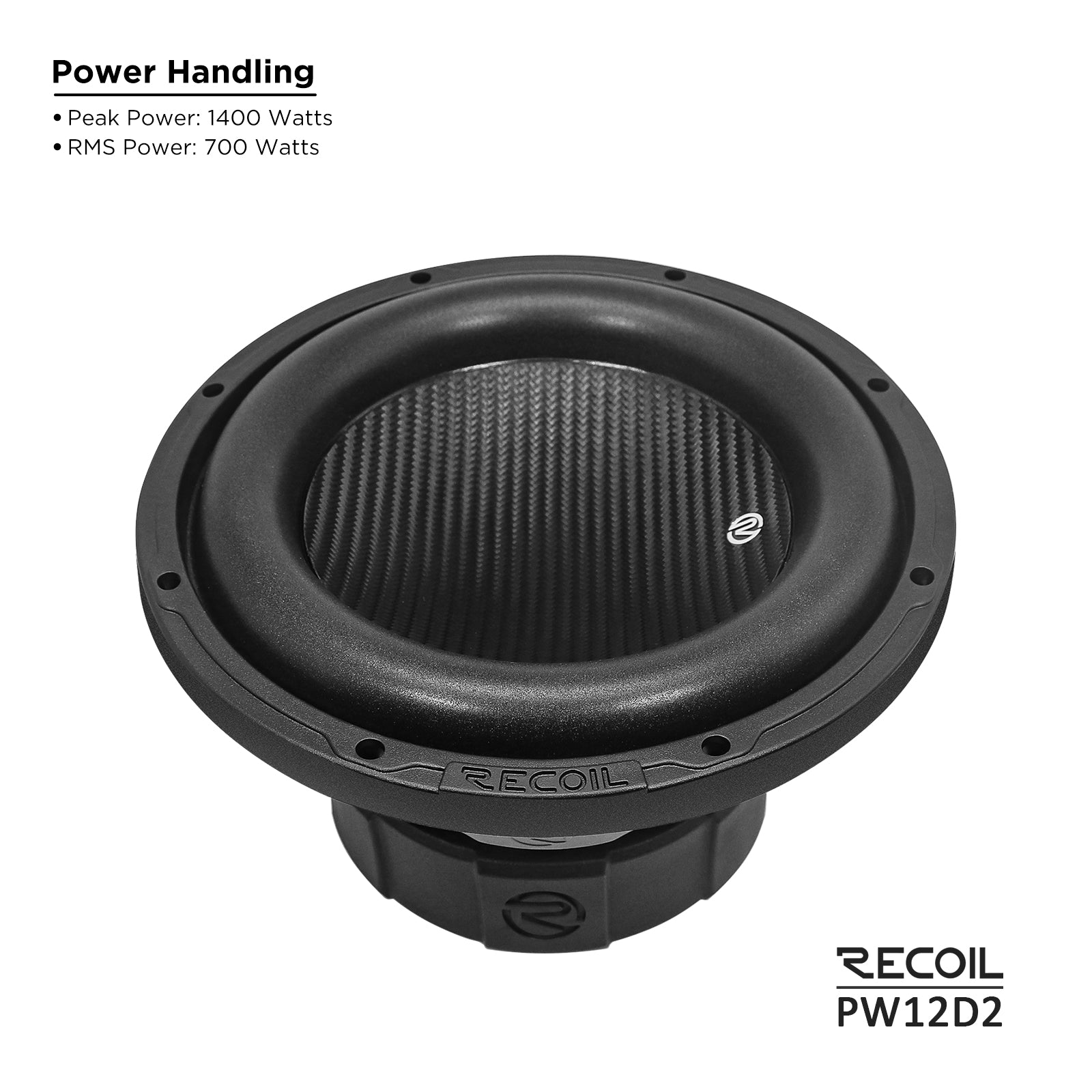

• 700W RMS / 1400W peak power handling — Matches a wide range of mono amplifiers in the 500–1000W RMS class.

Specifications

• Nominal Impedance: Dual 2Ω
• RMS Power Handling: 700 Watts
• MAX Power Handling: 1400 Watts
• Frequency Response: 26–300 Hz
• Voice Coil Diameter: 2.5" (63.5mm)
• Voice Coil Material: ASV
• Cone Material: IMPP
• Frame: Steel
• Magnet: Ferrite
• Magnet Weight: 306 oz (108 oz)
• Xmax: 14mm

Thiele/Small Parameters

• Revc: 1 Ω
• Sensitivity: 84.7 dB
• Fs: 25.9 Hz
• Qts: 0.46
• Qes: 0.50
• Qms: 5.17
• Mms: 208.2 g
• Vas: 56.2 L
• η0 (Efficiency): 0.19%
• Cms: 0.18 mm/N
• BL: 8.2 T·m
• Sd: 471.4 cm²

Dimensions

• Overall Depth: 7.63" (194mm)
• Mounting Depth: 6.44" (163.5mm)
• Overall Diameter: 12.63" (320.5mm)
• Cutout Diameter: 11.14" (283mm)
