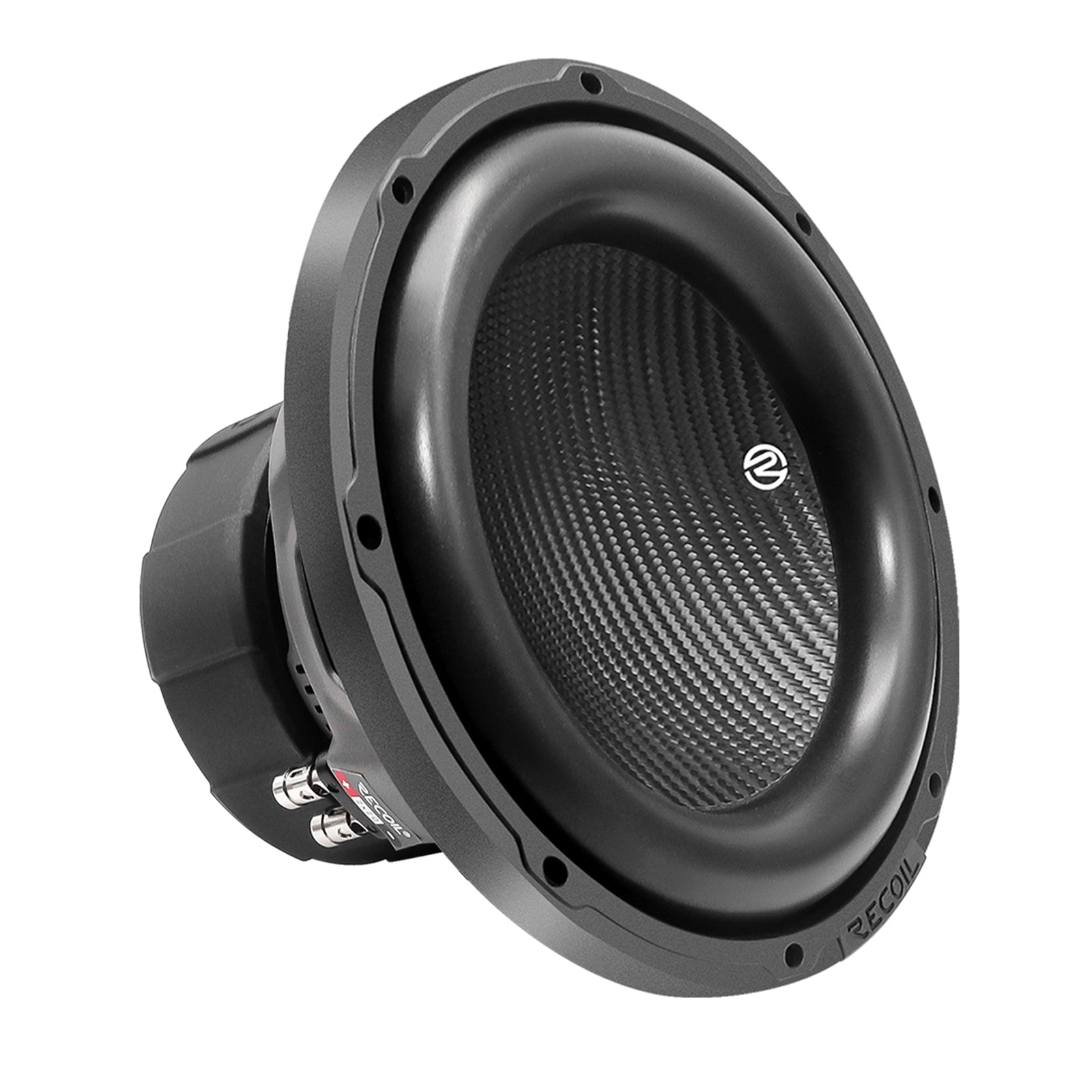

PW15D4 - 15-inch Dual 4-ohm Subwoofer

The PW15D4 is built for sustained high-output performance, delivering 800 watts RMS through a dual 4-ohm configuration that gives installers flexible wiring options for a wide range of amplifier setups. Its 4-layer high-temperature copper voice coil and active airflow cooling system are engineered to maintain thermal stability under extended, demanding use.

• 4-layer high-temperature copper voice coil for sustained thermal performance during prolonged high-power operation
• High-flux ferrite motor delivers authoritative low-frequency reproduction from 27 Hz to 250 Hz

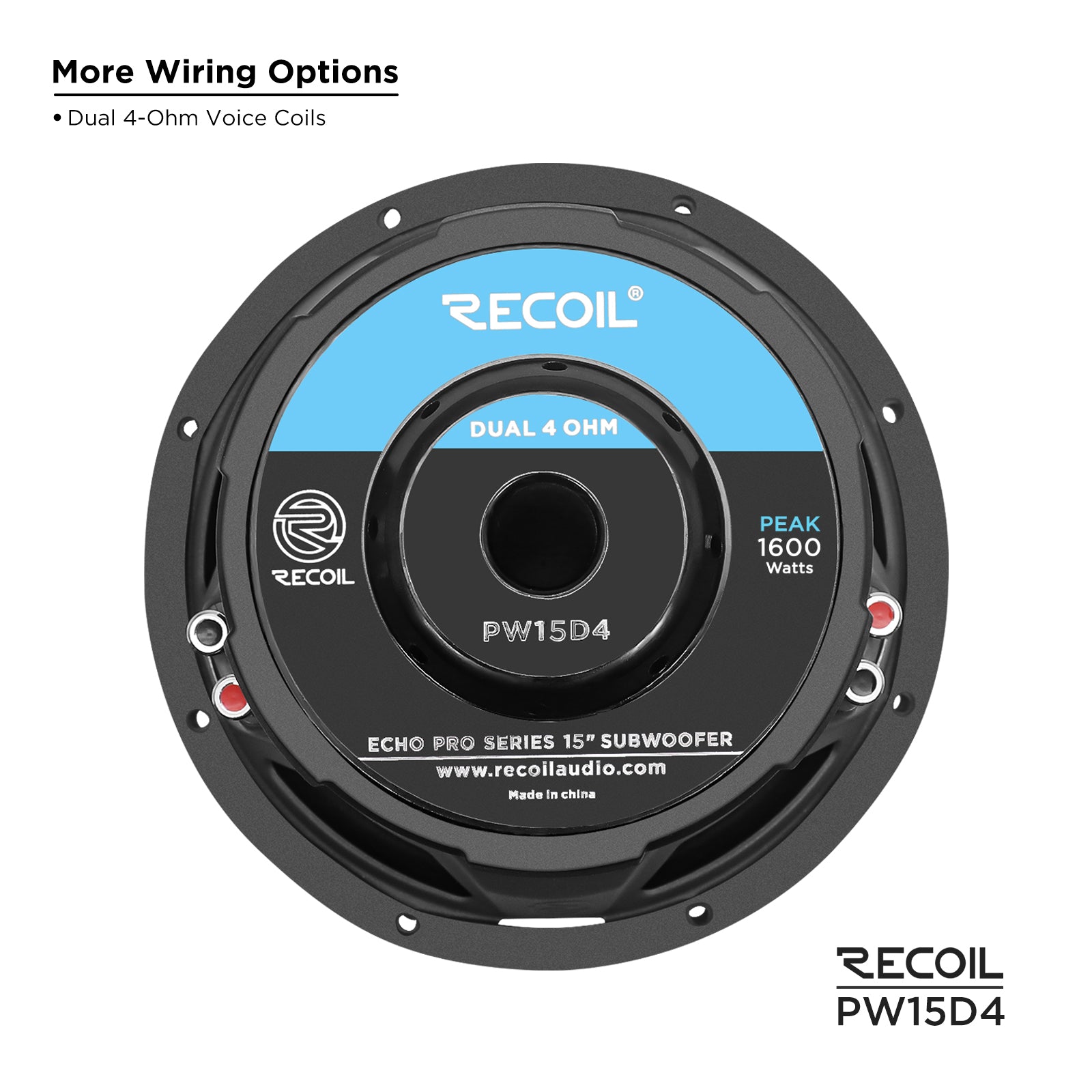

• Dual 4-ohm voice coil allows series (8Ω) or parallel (2Ω) wiring to match a variety of amplifier configurations

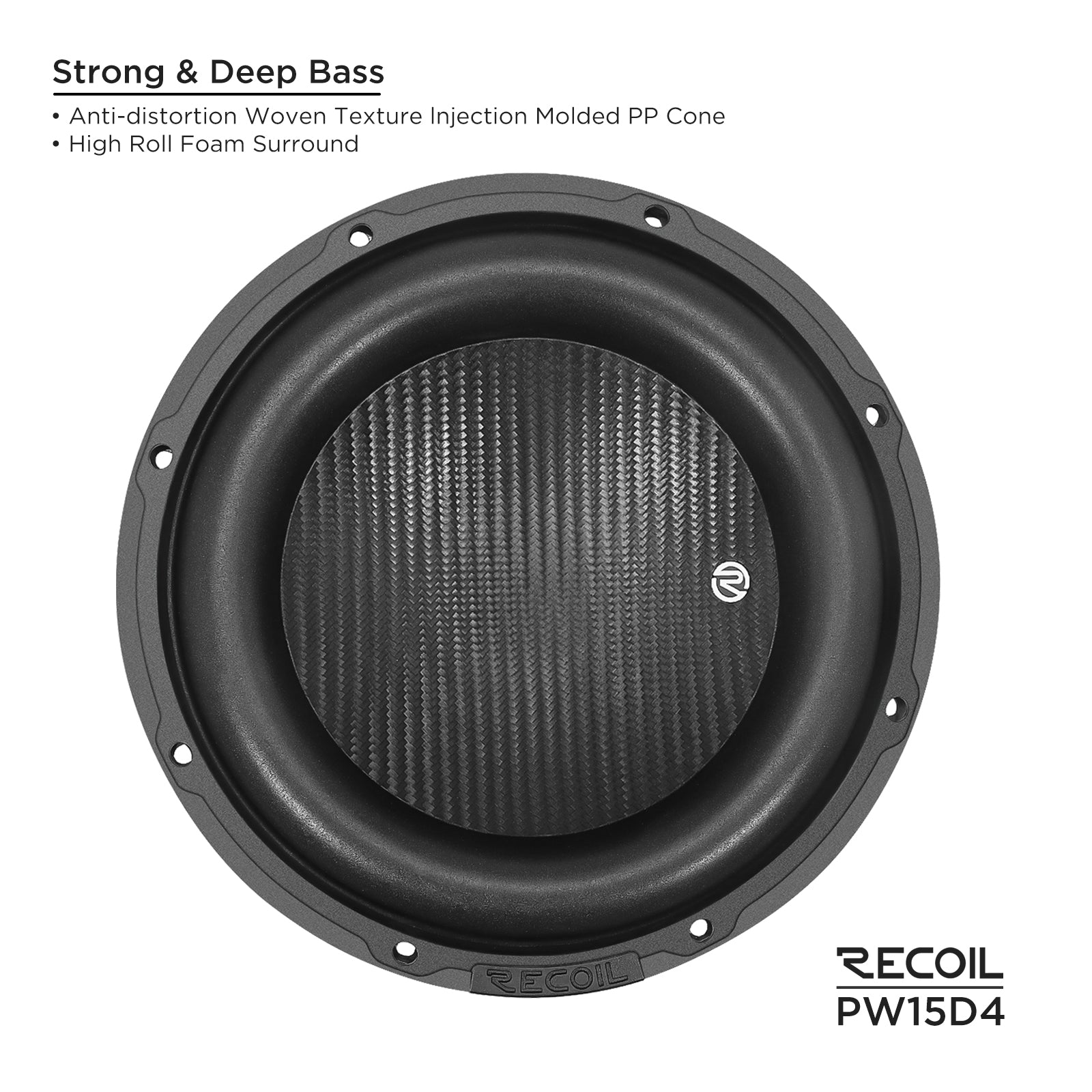

• IMPP cone with polycarbonate spider suspension provides controlled excursion and accurate transient response

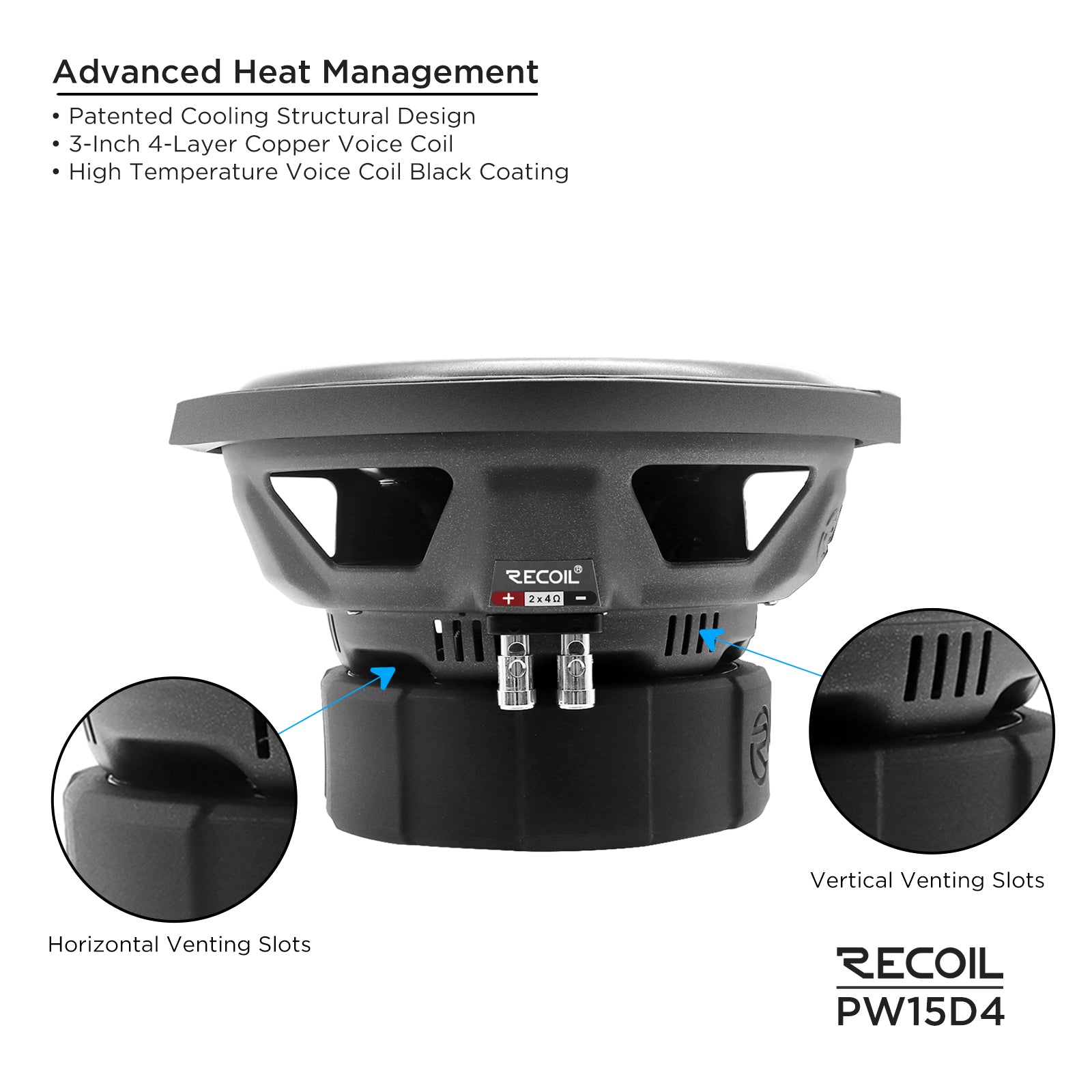

• Advanced airflow cooling system reduces heat buildup to protect the voice coil at peak loads

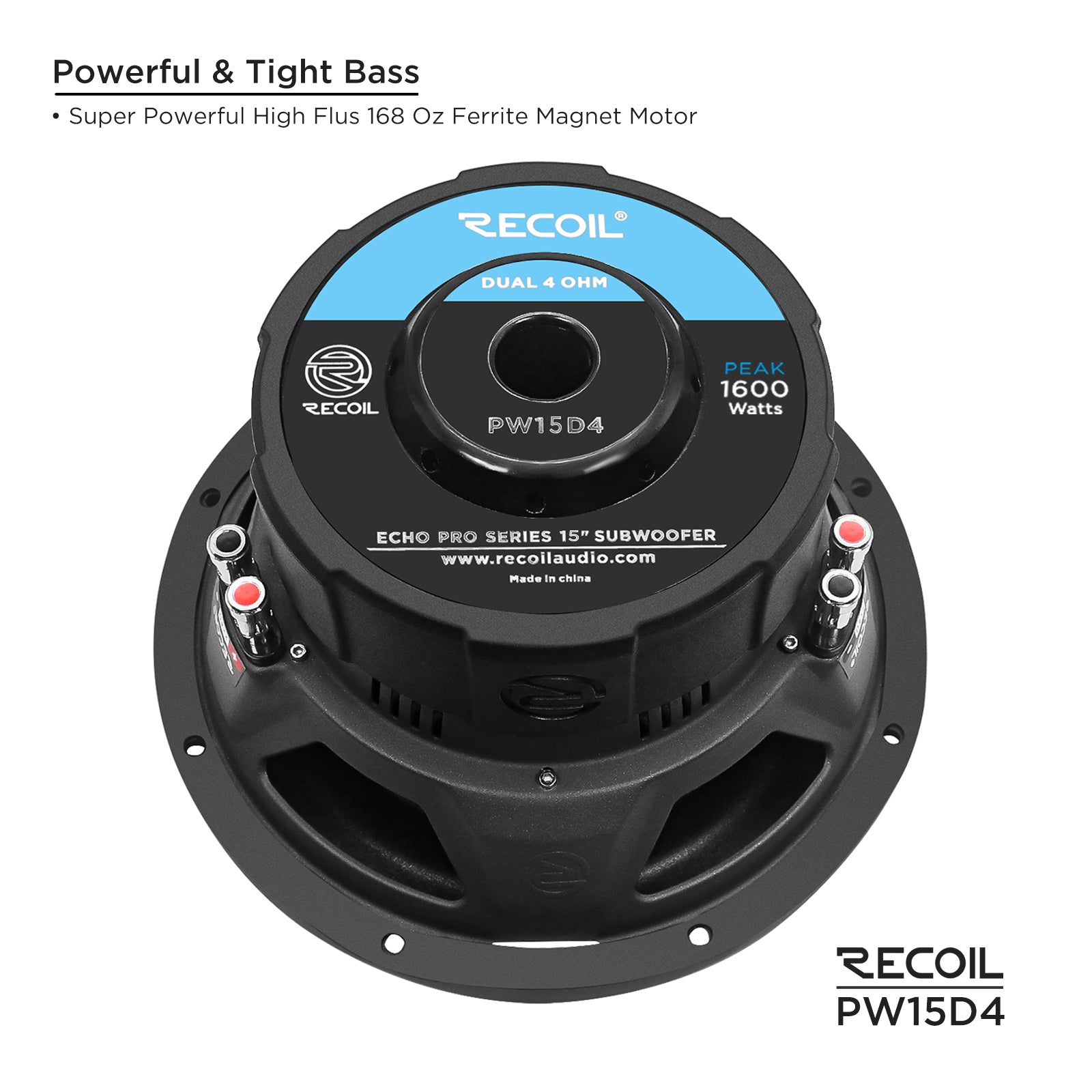

• 168 oz. magnet assembly with a 3-inch voice coil supports the high-flux motor structure for tight, controlled bass output

Specifications

• Nominal Impedance: Dual 4Ω

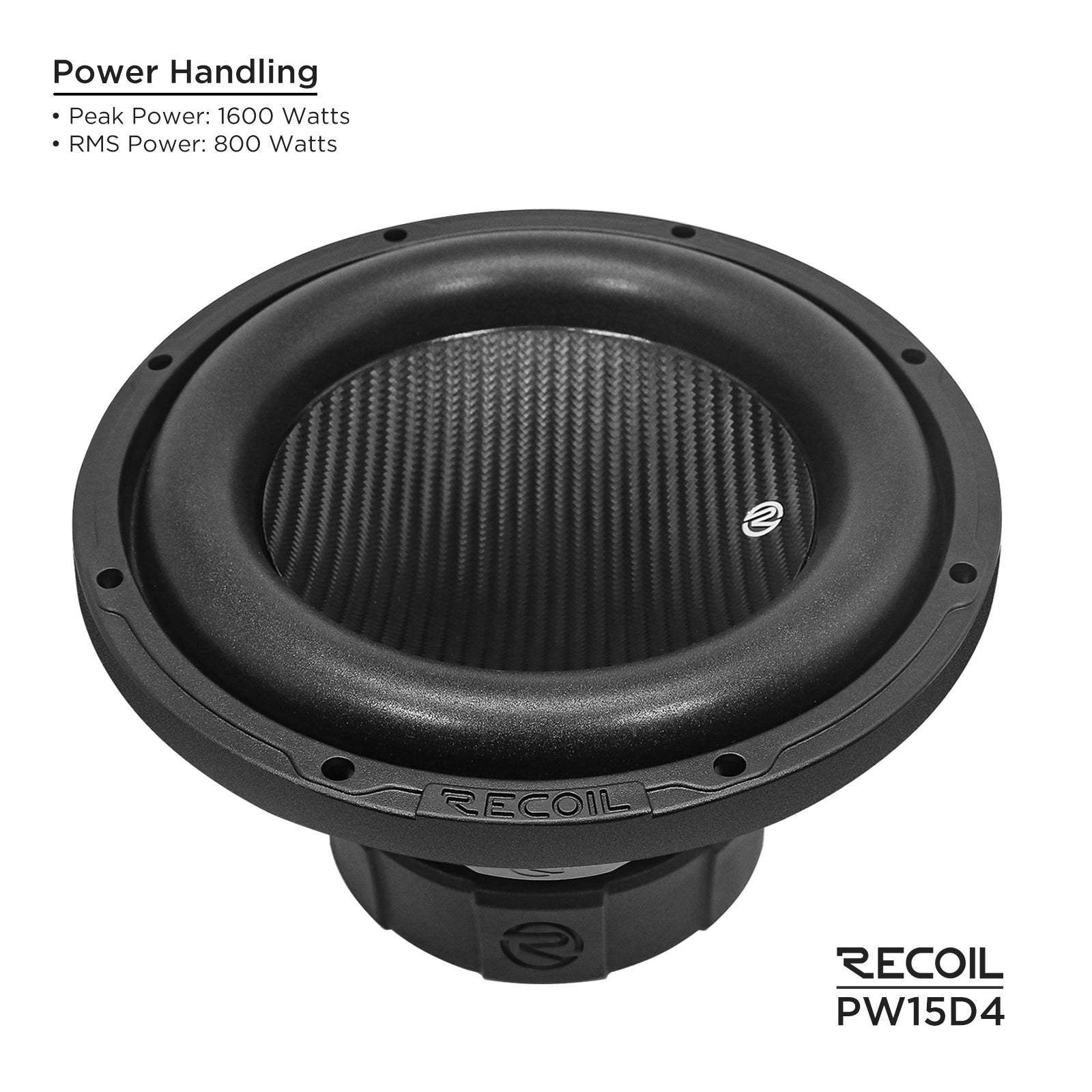

• RMS Power Handling: 800 Watts
• MAX Power Handling: 1600 Watts
• Frequency Response: 27–250 Hz
• Voice Coil Diameter: 3" (76.5mm)
• Voice Coil Material: ASV
• Cone Material: IMPP
• Frame: Steel
• Magnet: Ferrite
• Magnet Weight: 476 oz (168 oz)
• Xmax: 14mm

Thiele/Small Parameters

• Revc: 1.6 Ω
• Sensitivity: 87.8 dB
• Fs: 25.5 Hz
• Qts: 0.53
• Qes: 0.57
• Qms: 7.25
• Mms: 239.4 g
• Vas: 134 L
• η0 (Efficiency): 0.38%
• Cms: 0.16 mm/N
• BL: 11.03 T·m
• Sd: 764.5 cm²

Dimensions

• Overall Depth: 9.05" (230mm)
• Mounting Depth: 7.90" (201mm)
• Overall Diameter: 15.40" (391mm)
• Cutout Diameter: 13.80" (351mm)
