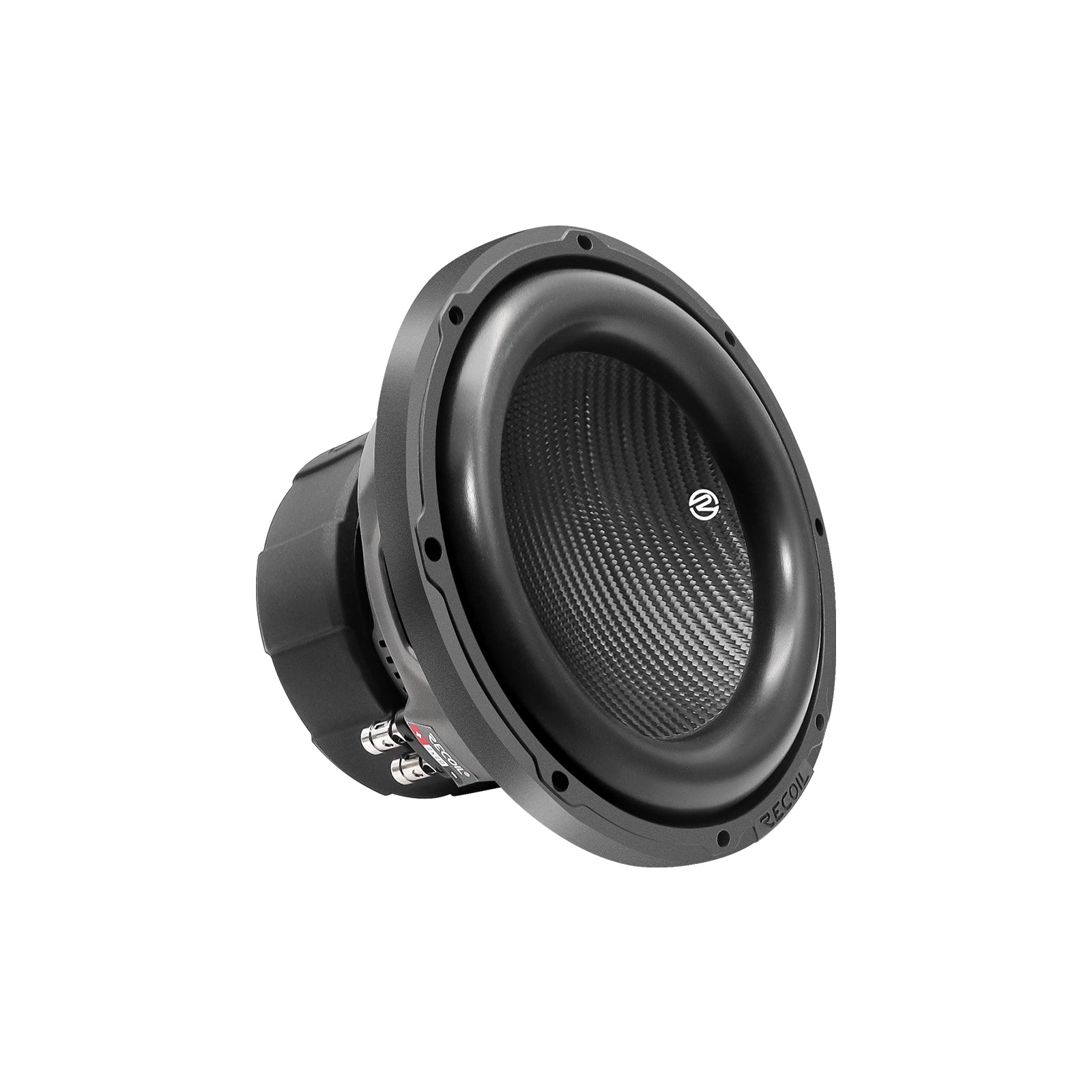

PW8D2 - Echo Pro 8 Inch Subwoofer - 800 Watts Power Dual 2 OHM Voice Coil, 2" Black-coated 4 Layer High Temperature Voice Coil, Competition Grade Impp Cone

The PW8D2 is an 8-inch dual 2-ohm subwoofer built for compact installs that demand real output. At 400 watts RMS with an 800-watt peak, it punches well above its size class. A high-flux ferrite motor and 4-layer copper voice coil keep it performing cleanly under sustained load, not just in short bursts.

• 4-layer high-temperature copper voice coil for extended high-output operation without thermal rolloff
• High-flux ferrite motor delivers authoritative low-frequency reproduction down to 32 Hz
• Polycarbonate spider suspension engineered for precise cone control and responsive transient tracking

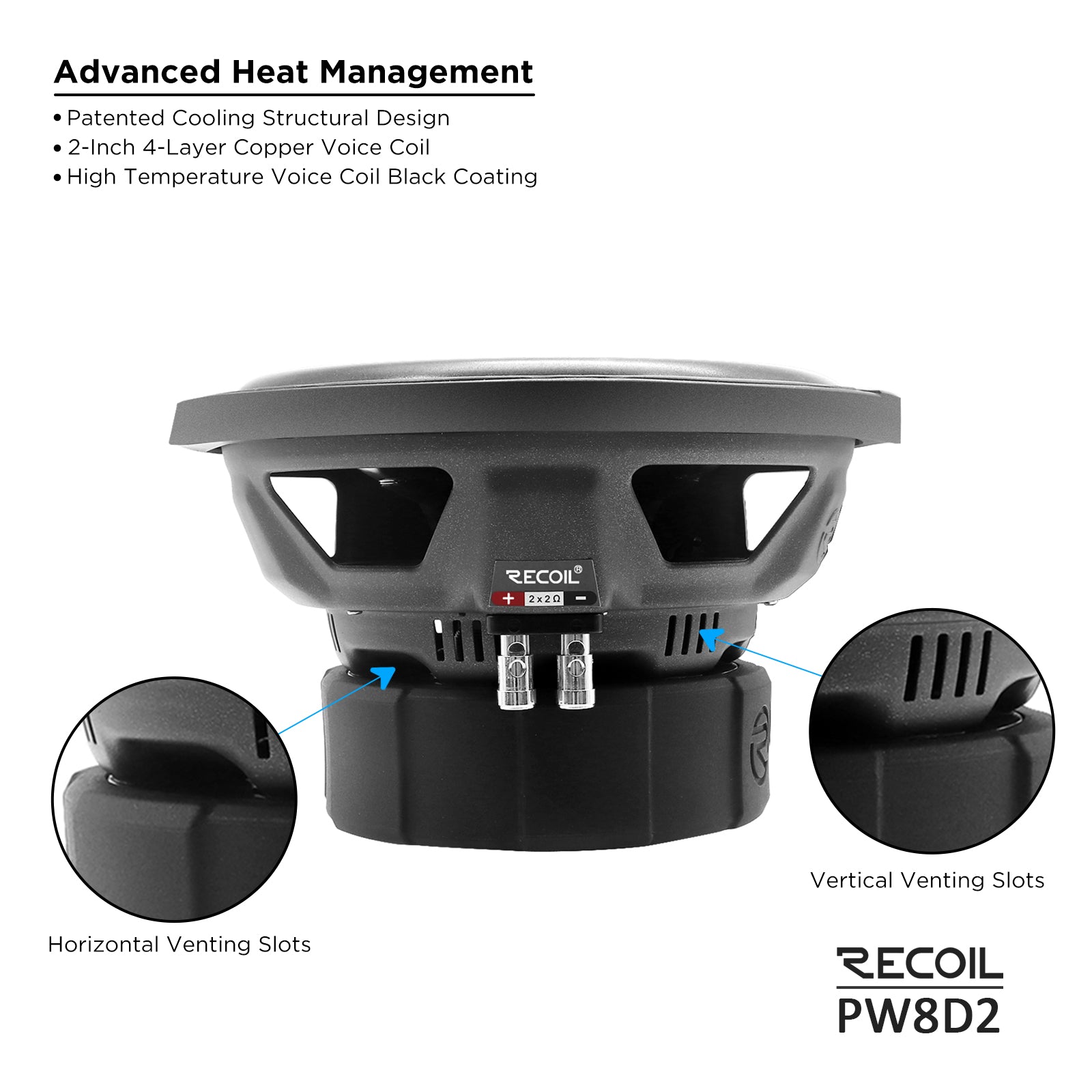

• Advanced airflow cooling system manages heat during prolonged high-power use

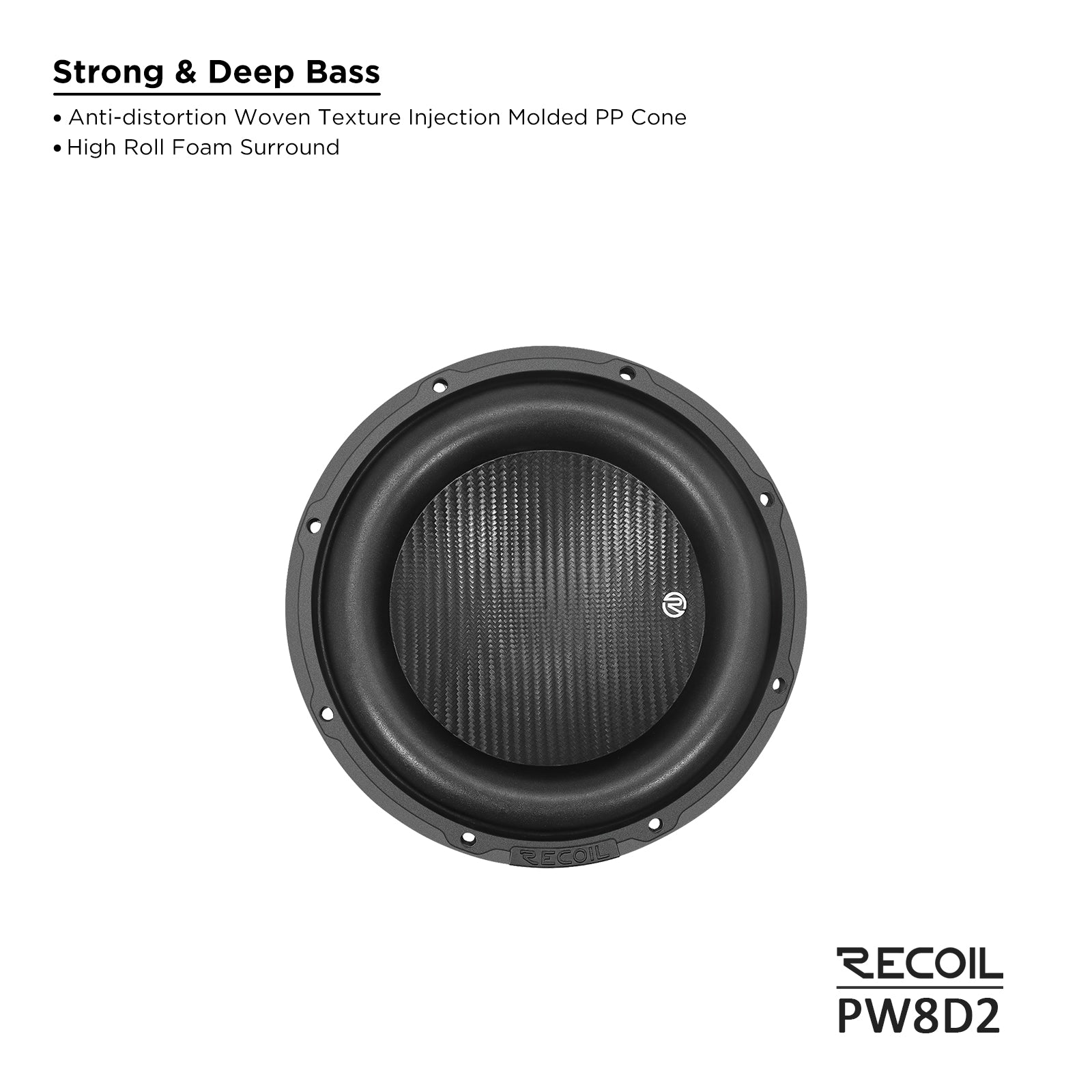

• IMPP cone material balances rigidity and mass for accurate bass at this driver size

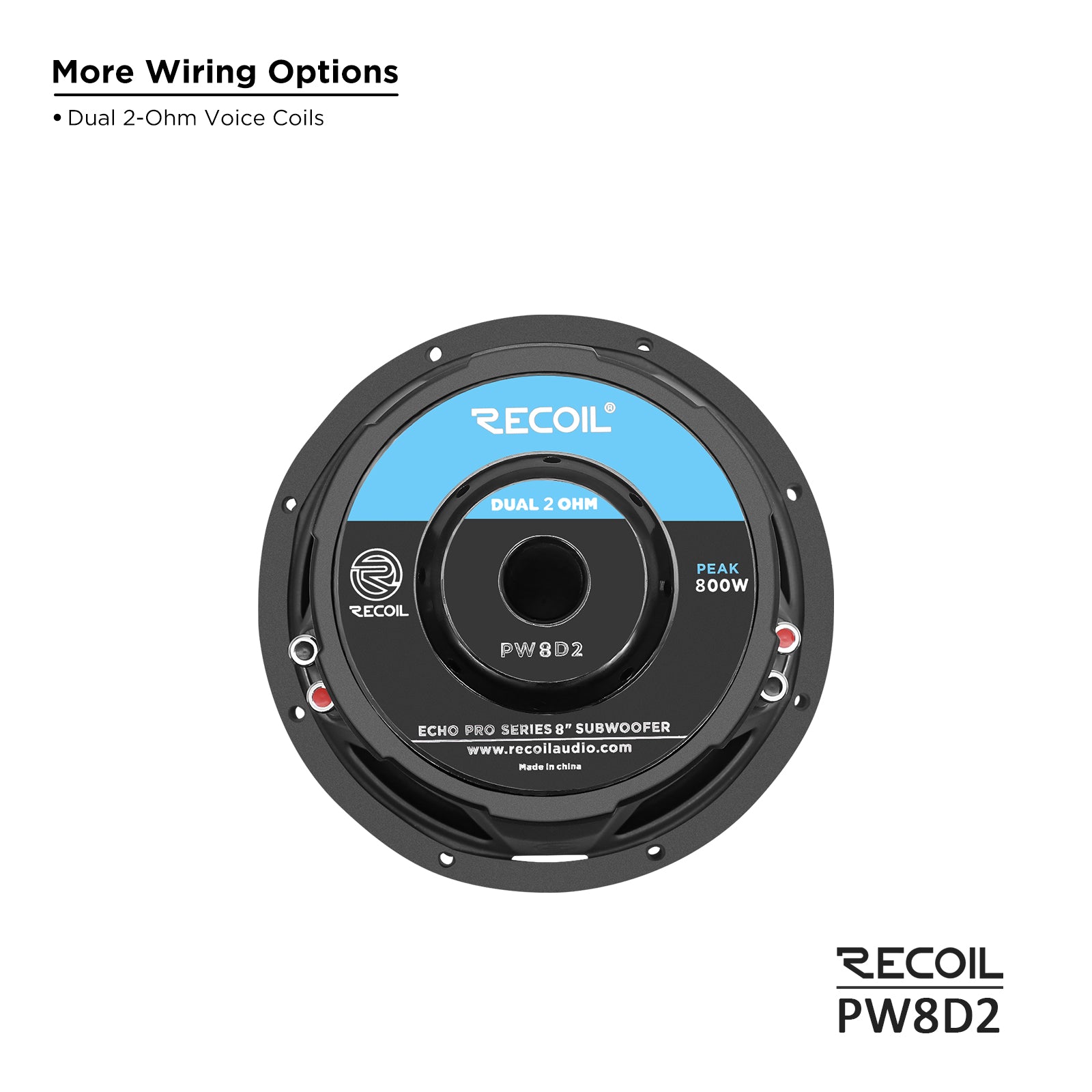

• Dual 2-ohm voice coil supports 4-ohm series or 1-ohm parallel wiring configurations

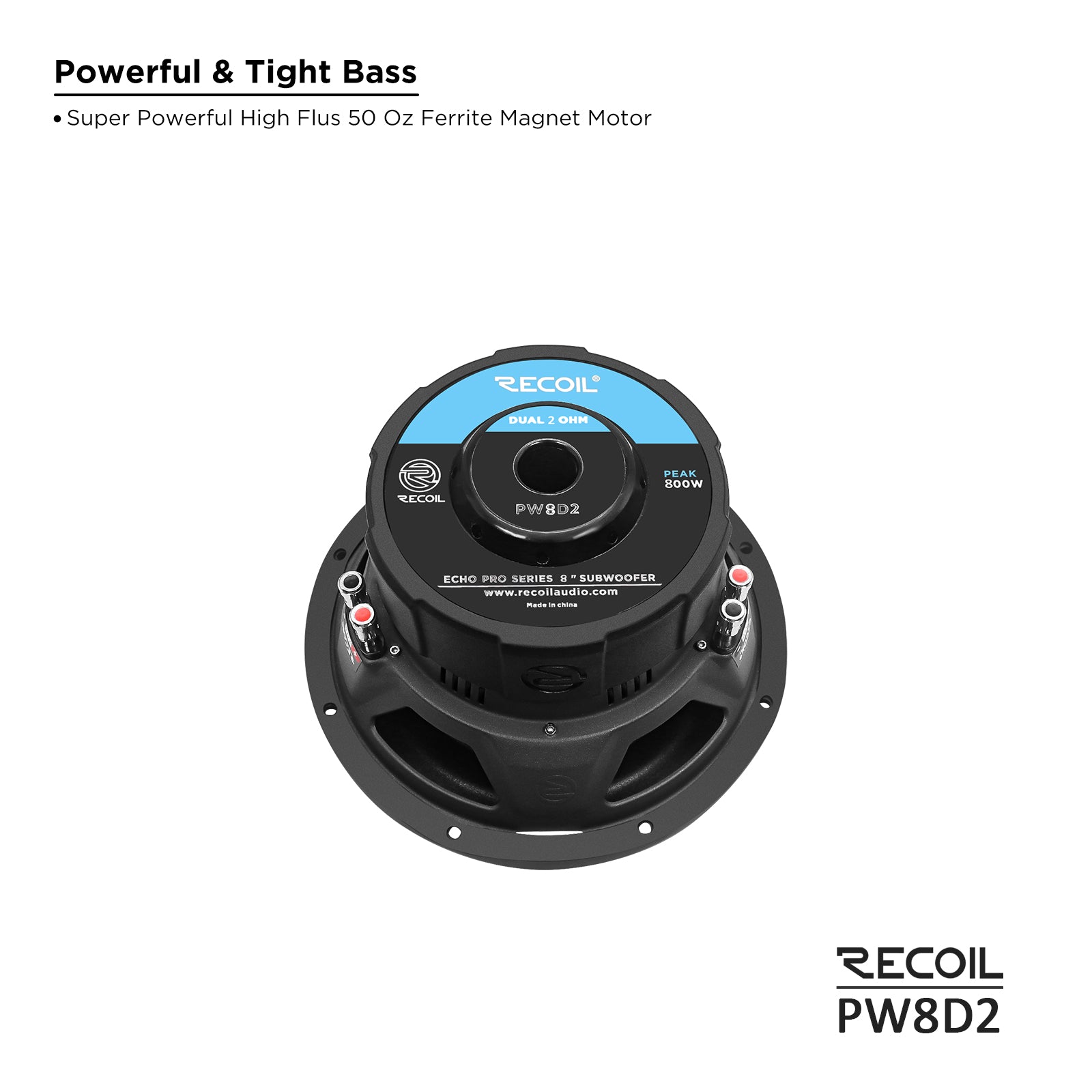

• 50 oz. magnet provides the motor strength needed to hit rated RMS consistently

Specifications

• Nominal Impedance: Dual 2Ω

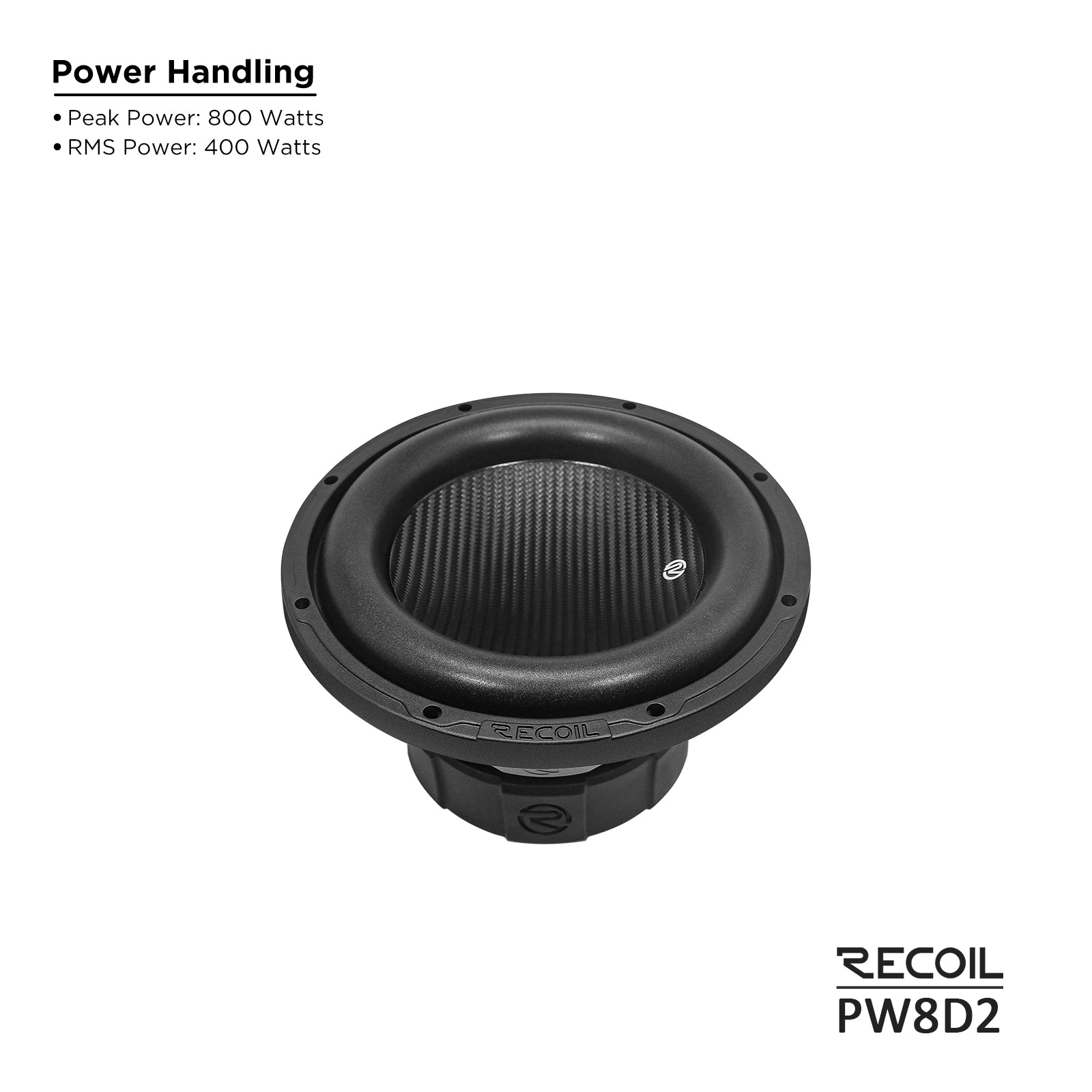

• RMS Power Handling: 400 Watts
• MAX Power Handling: 800 Watts
• Frequency Response: 32–600 Hz
• Voice Coil Diameter: 2" (50.8mm)
• Voice Coil Material: ASV
• Cone Material: IMPP
• Frame: Steel
• Magnet: Ferrite
• Magnet Weight: 135 oz (50 oz)
• Xmax: 8.8mm

Thiele/Small Parameters

• Revc: 1 Ω
• Sensitivity: 83.6 dB
• Fs: 37.7 Hz
• Qts: 0.40
• Qes: 0.44
• Qms: 4.35
• Rms: 4.5 kg/s
• Vas: 12.3 L
• η0 (Efficiency): 0.14%
• CP: 4031.5 µF
• Res: 44.1 Ω
• Cms: 0.22 mm/N
• BL: 6.6 T·m
• Le: 0.51 mH
• Mms: 82 g
• Sd: 201 cm²

Dimensions

• Overall Depth: 4.96" (126mm)
• Mounting Depth: 4.13" (105mm)
• Overall Diameter: 8.47" (215mm)
• Cutout Diameter: 7.24" (184mm)
