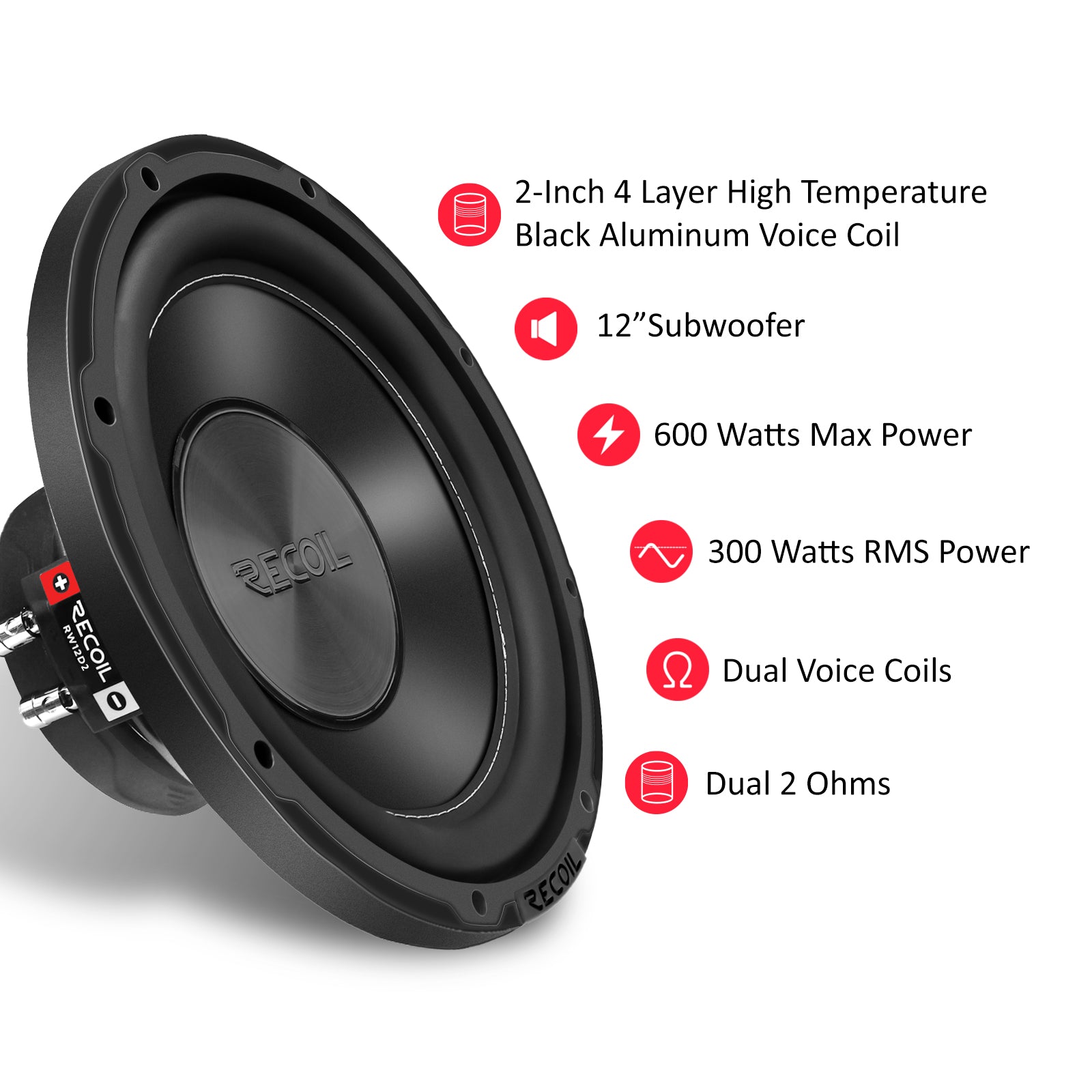

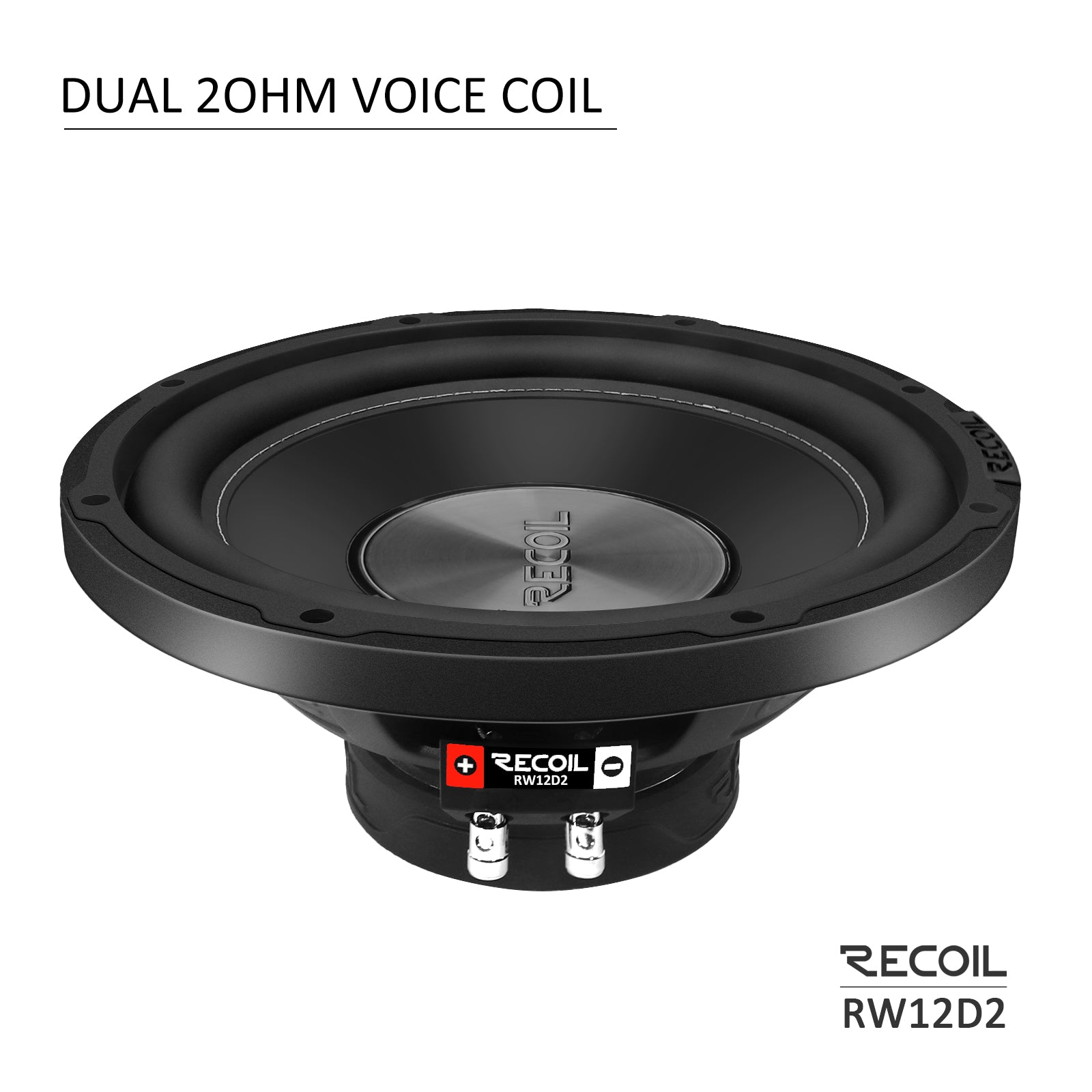

RW12D2 - Echo Series 12 Inch Subwoofer - 600 Watts Power Dual 2 OHM Voice Coil, 2" Black-coated 4 Layer High Temperature Voice Coil, Competition Grade Pressed Paper Cone

The RW12D2 is a 12-inch dual 2-ohm subwoofer built for daily use, handling 300 watts RMS with a 600-watt peak rating. Its single slug ferrite magnet motor and advanced cooling structure keep performance stable during extended high-output sessions. This is a driver engineered for efficiency and reliability without sacrificing low-end reach down to 33 Hz.

• High-temperature 2-inch copper voice coil handles sustained power without thermal breakdown during long listening sessions.
• 40 oz. single slug ferrite magnet motor delivers consistent, punchy output across a wide range of enclosure types.
• Pressed pulp cone with cotton fibers balances rigidity and flex for accurate transient response and low-frequency extension.
• High roll foam surround allows deep excursion while keeping cone movement controlled and predictable.

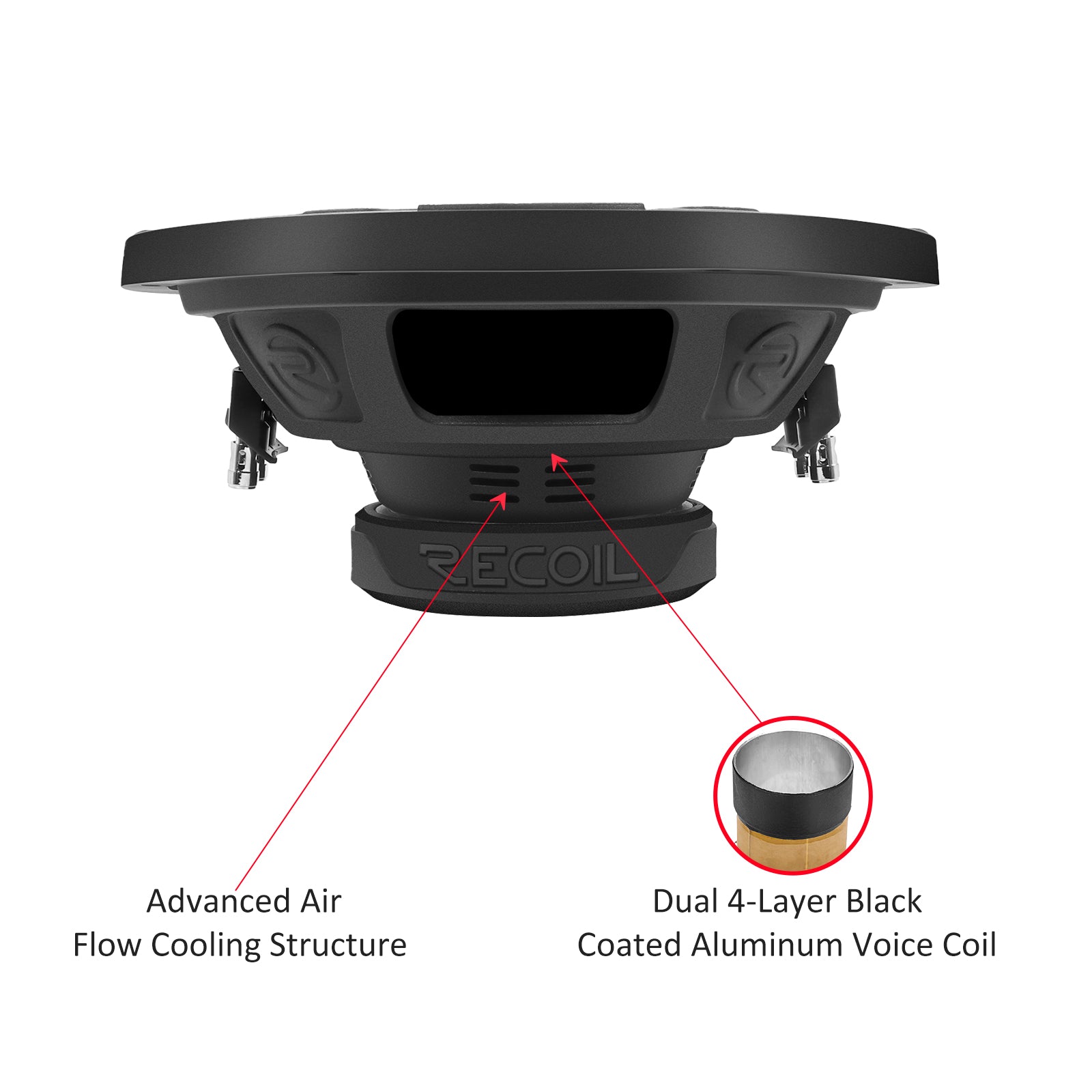

• Advanced cooling structural design manages heat buildup to maintain output at peak levels over time.
• 33 Hz – 350 Hz frequency response suits both ported and sealed enclosures across a range of music genres.
• Dual 2-ohm configuration gives flexibility to wire at 1 or 4 ohms to match your amplifier's stable load.

Specifications

• Nominal Impedance: Dual 2Ω
• RMS Power Handling: 300 Watts
• MAX Power Handling: 600 Watts
• Frequency Response: 35–300 Hz
• Voice Coil Diameter: 2" (50.8mm)
• Voice Coil Material: ASV
• Cone Material: Fiber Paper
• Frame: Steel
• Magnet: Ferrite
• Magnet Weight: 112 oz (40 oz)
• Xmax: 7.5mm

Thiele/Small Parameters

• Fs: 34 Hz
• Qts: 0.60
• Qes: 0.68
• Qms: 4.69
• Vas: 57.6 L (2.03 ft³)
• Sensitivity (1W/1M): 87 dB

Dimensions

• Overall Depth: 5.83" (148.5mm)
• Mounting Depth: 5.12" (130.5mm)
• Overall Diameter: 12.05" (306.2mm)
• Cutout Diameter: 10.94" (278mm)
