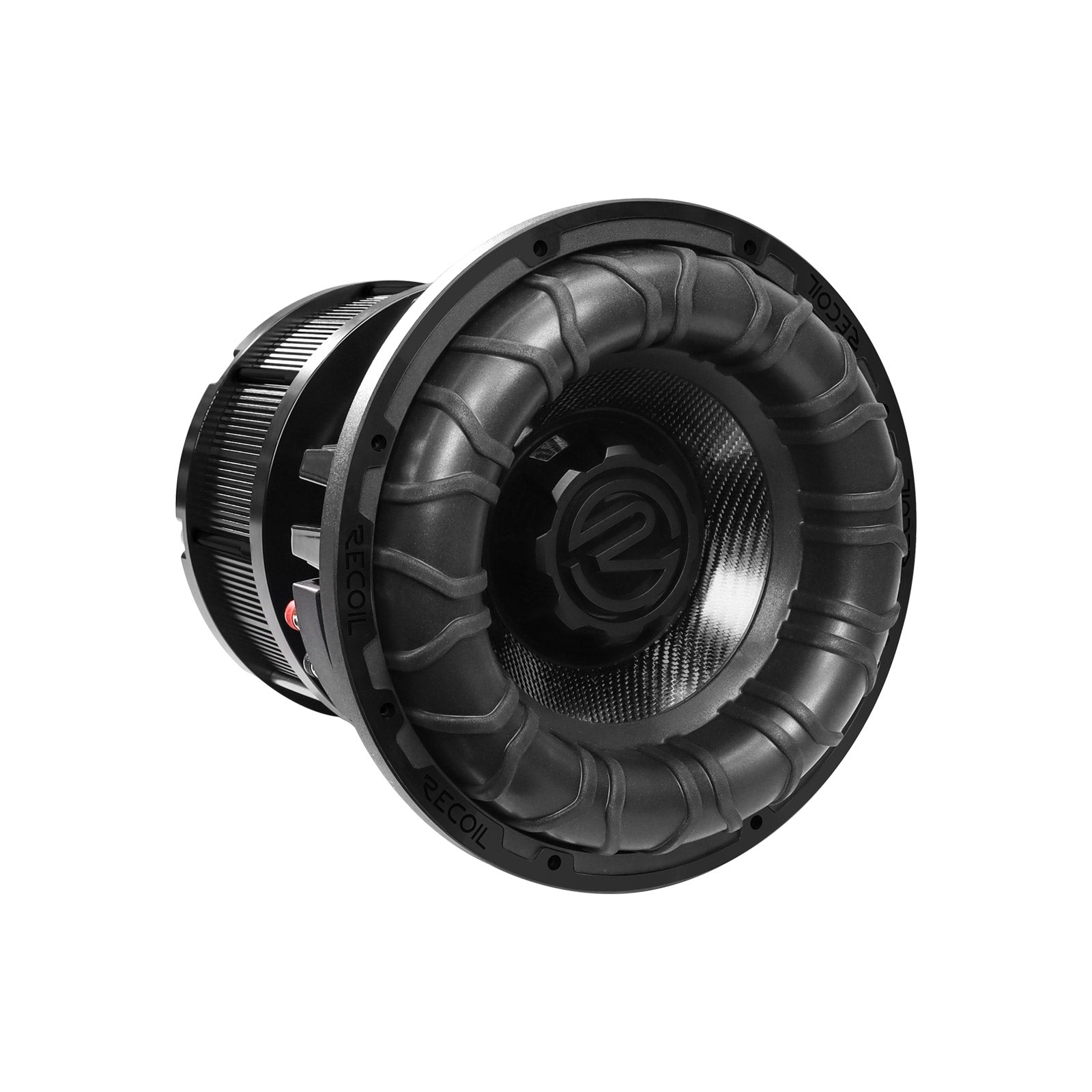

SPL12D1 - 5000 Watt 12-inch Dual 1 OHM Voice Coil Subwoofer

The SPL12D1 is built for competition-level output, delivering 2500W RMS and 5000W peak from a 12-inch platform with a dual 1-ohm voice coil configuration. Its three-layer carbon fiber cone and oversized 418 oz. magnet are engineered for high-excursion, high-SPL environments where structural integrity under sustained power is non-negotiable. This driver is suited for dedicated SPL builds requiring a low-impedance load and maximum cone control.

• Dual 3.0-inch (76.5mm) voice coils wired at 1Ω + 1Ω, allowing flexible final impedance configurations for amplifier matching.
• Three-layer carbon fiber cone provides exceptional stiffness-to-weight ratio, reducing flex and distortion at high excursion levels.
• 2500W RMS / 5000W peak power handling rated for sustained competition use.
• 418 oz. magnet assembly delivers the motor strength needed to maintain linear control at high power levels.
• 2-inch WideRidge surround supports long-throw excursion while maintaining cone alignment.

Specifications

• Nominal Impedance: Dual 1Ω
• RMS Power Handling: 2500 Watts
• MAX Power Handling: 5000 Watts
• Frequency Response: 36–350 Hz
• Voice Coil Diameter: 3" (76.5mm)
• Voice Coil Material: ASV
• Cone Material: Carbon Fiber
• Frame: Aluminum
• Magnet: Ferrite
• Magnet Weight: 418 oz
• Xmax: 25mm

Thiele/Small Parameters

• Revc: 0.5 Ω
• Sensitivity: 84 dB
• Fs: 33 Hz
• Qts: 0.34
• Qes: 0.40
• Qms: 2.37
• Vas: 12.7 L (0.45 ft³)
• η0 (Efficiency): 0.13%
• Cms: 0.053 mm/N
• BL: 10 T·m
• Mms: 390 g
• Sd: 453 cm²

Dimensions

• Overall Depth: 12.64" (321mm)
• Mounting Depth: 10.56" (268.2mm)
• Overall Diameter: 12.80" (325mm)
• Cutout Diameter: 11.34" (288mm)
