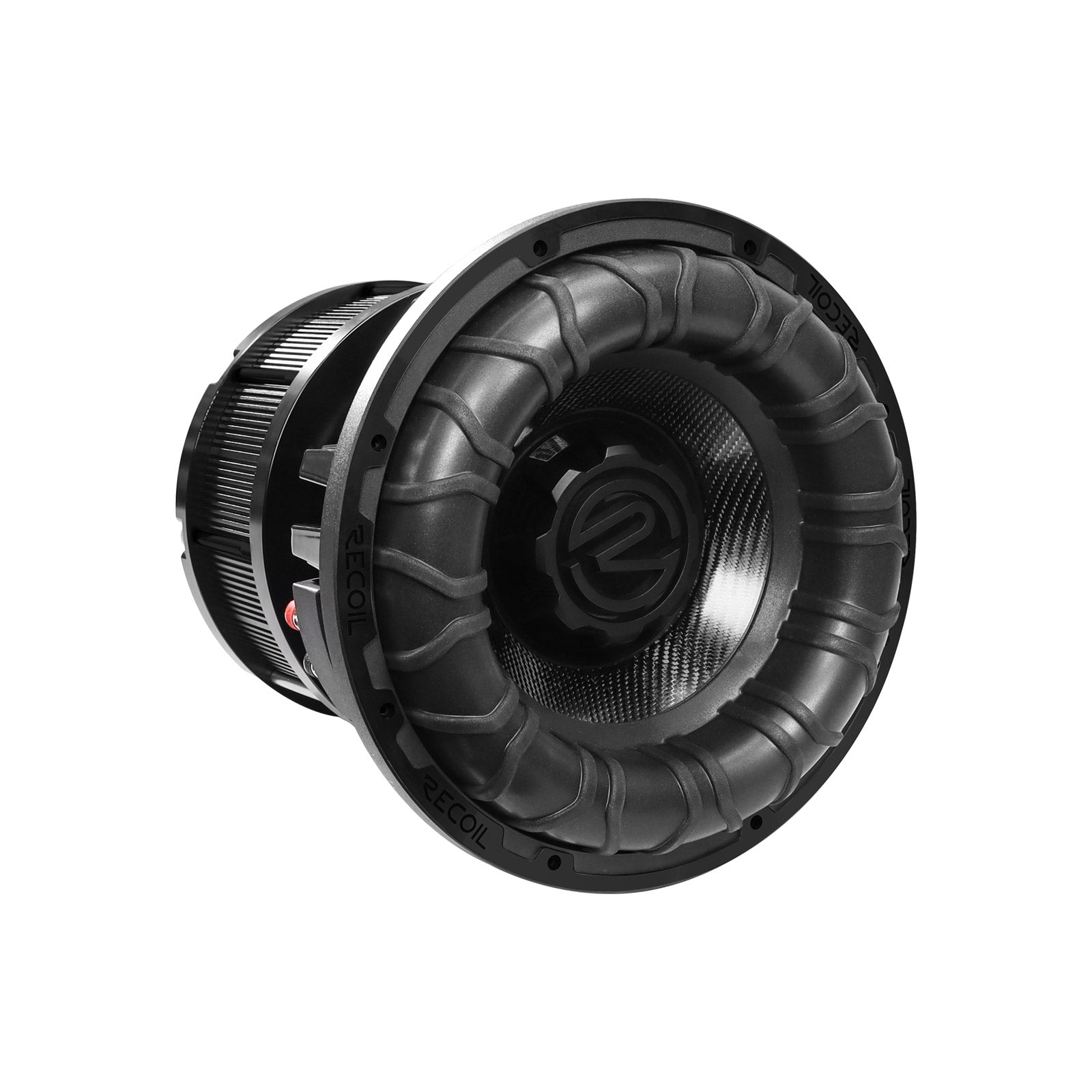

SPL12D2 - 5000 Watt 12-inch Dual 2 OHM Voice Coil Subwoofer

The SPL12D2 is built for serious competition applications, delivering 2500W RMS and 5000W peak from a 12-inch platform with a dual 2-ohm voice coil configuration. Its three-layer carbon fiber cone and 418-oz magnet assembly are spec'd for high-output installs where mechanical durability and thermal headroom matter. This is a woofer designed to be pushed hard.

• Dual 3.0-inch (76.5mm) voice coils wired at 2Ω + 2Ω, allowing flexible impedance configurations for amplifier matching.
• Three-layer carbon fiber cone provides high stiffness-to-weight ratio, reducing distortion under extreme excursion.
• 418-oz magnet delivers the motor strength required to sustain output at competition power levels.
• 2-inch WideRidge surround supports controlled long-throw movement and extended cone travel.
• 2500W RMS / 5000W peak power handling suited for high-SPL and SPL competition builds.

Specifications

• Nominal Impedance: Dual 1.8Ω + 1.8Ω
• RMS Power Handling: 2500 Watts
• MAX Power Handling: 5000 Watts
• Frequency Response: 37–350 Hz
• Voice Coil Diameter: 3" (76.5mm)
• Voice Coil Material: ASV
• Cone Material: Carbon Fiber
• Frame: Aluminum
• Magnet: Ferrite
• Magnet Weight: 418 oz
• Xmax: 25mm

Thiele/Small Parameters

• Revc: 1 Ω
• Sensitivity: 83 dB
• Fs: 33 Hz
• Qts: 0.34
• Qes: 0.40
• Qms: 2.37
• Vas: 15.4 L (0.54 ft³)
• η0 (Efficiency): 0.132%
• Cms: 0.053 mm/N
• BL: 15 T·m
• Mms: 440 g
• Sd: 453 cm²

Dimensions

• Overall Depth: 12.64" (321mm)
• Mounting Depth: 10.56" (268.2mm)
• Overall Diameter: 12.80" (325mm)
• Cutout Diameter: 11.34" (288mm)
